Description
Key Features:
-
Multi-Wattage Selectable:
-
2FT: 20W / 25W / 30W (Up to 4,086 lm)
-
4FT: 25W / 35W / 50W (Up to 6,775 lm)
-
8FT: 60W / 75W / 90W (Up to 12,870 lm)
-
-
Selectable CCT: 3500K / 4000K / 5000K
-
High Efficacy: Up to 136.91 lm/W
-
Voltage: 120–277V
-
Dimming: 0–10V dimmable (standard)
-
Rated Life: Up to 100,000 hours
-
Construction: Impact-resistant PC housing, stainless steel clips
-
Optics: Lumiled 2835 chips with a 110° beam angle
-
Certifications: IP66, IK10, NSF splash/non-food zone rated
-
Warranty: 5-year limited warranty
LEDONE LOC Vapor Tight LED Light Series – Streamlined Specifications Table
| Model | Length | Selectable Wattage | Selectable CCT | Max Lumens | Efficacy (lm/W) | Voltage | Power Factor | Dimming |
|---|---|---|---|---|---|---|---|---|

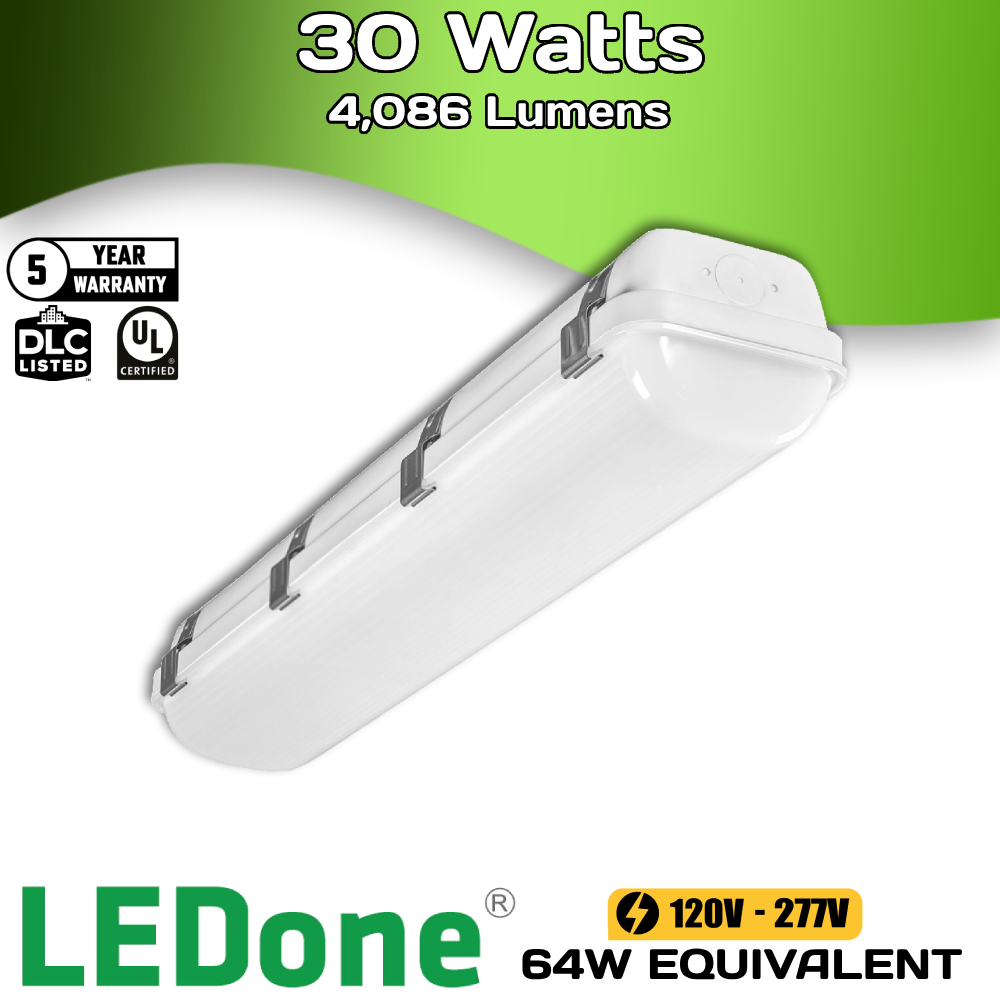

| LOC-2FTVT-MW(20/25/30)MCCT(35/40/50) | 2 FT | 20W / 25W / 30W | 3500K / 4000K / 5000K | 4,086.6 lm | 136.91 lm/W | 120–277V | ≥ 0.90 | 0–10V |
| LOC-4FTVT-MW(25/35/50)MCCT(35/40/50) | 4 FT | 25W / 35W / 50W | 3500K / 4000K / 5000K | 6,775.3 lm | 135.83 lm/W | 120–277V | ≥ 0.91 | 0–10V |

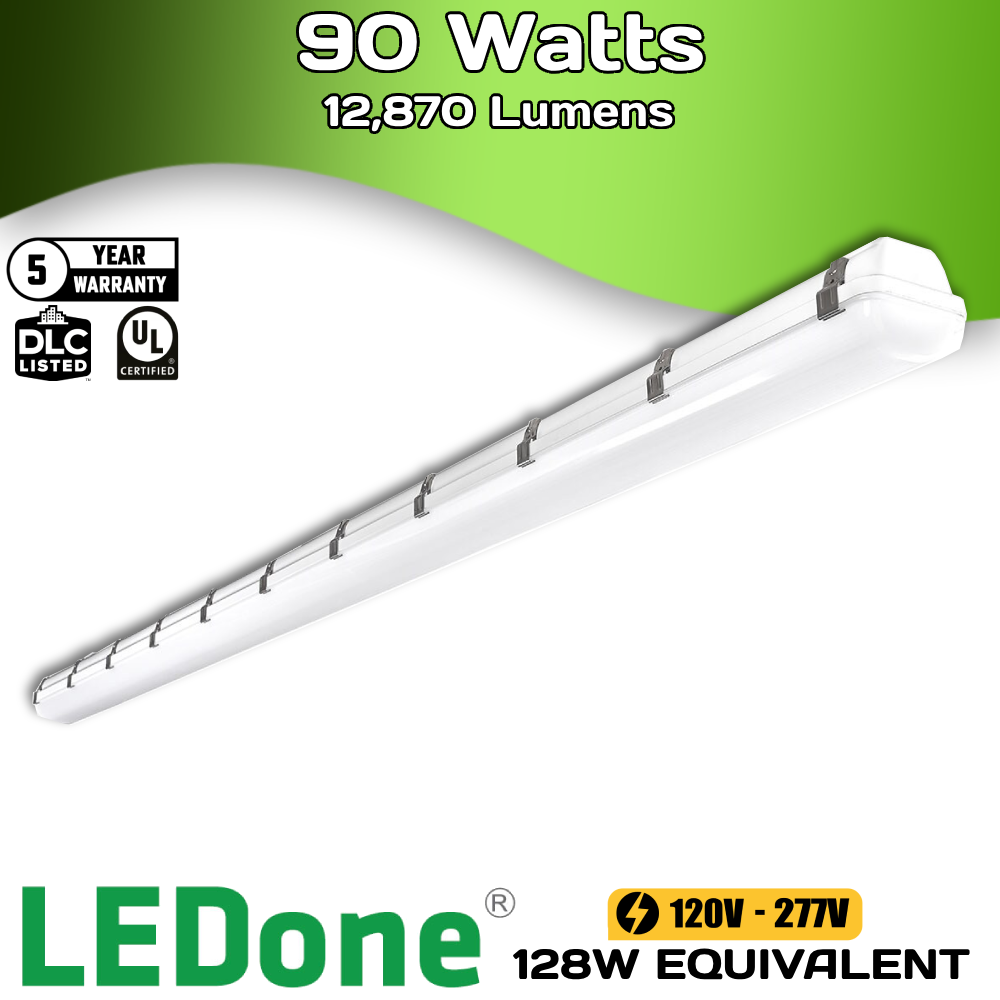

| LOC-8FTVT-MW(60/75/90)MCCT(35/40/50) | 8 FT | 60W / 75W / 90W | 3500K / 4000K / 5000K | 12,870 lm | 135.5 lm/W | 120–277V | ≥ 0.90 | 0–10V |
