LEDONE LOC Vapor Tight LED Light Series – 2FT / 4FT / 8FT Models
Engineered for durability, energy efficiency, and versatility, the LEDONE LOC Vapor Tight LED Light Family is ideal for harsh and demanding environments like warehouses, factories, garages, and parking structures. Available in 2-foot, 4-foot, and 8-foot lengths, each fixture features multi-wattage and multi-CCT selectability, allowing you to tailor output and color temperature to the needs of each space.
Common Features Across All Models
-
Durable PC housing with white cover
-
Seoul 2835 LED chips with wide 110° beam angle
-
0–10V dimming standard
-
IP65 & NSF rated – suitable for wet locations and splash zones
-
UL 1598 listed – certified for safety in wet locations
-
-4°F to 104°F operating temperature
-
Long life: 50,000 hours (L70)
-
Power Factor: ≥0.9 | CRI: 80+ | THD: <20%
-
5-year limited warranty
LEDONE LOC Vapor Tight LED Light Series – Product Specifications

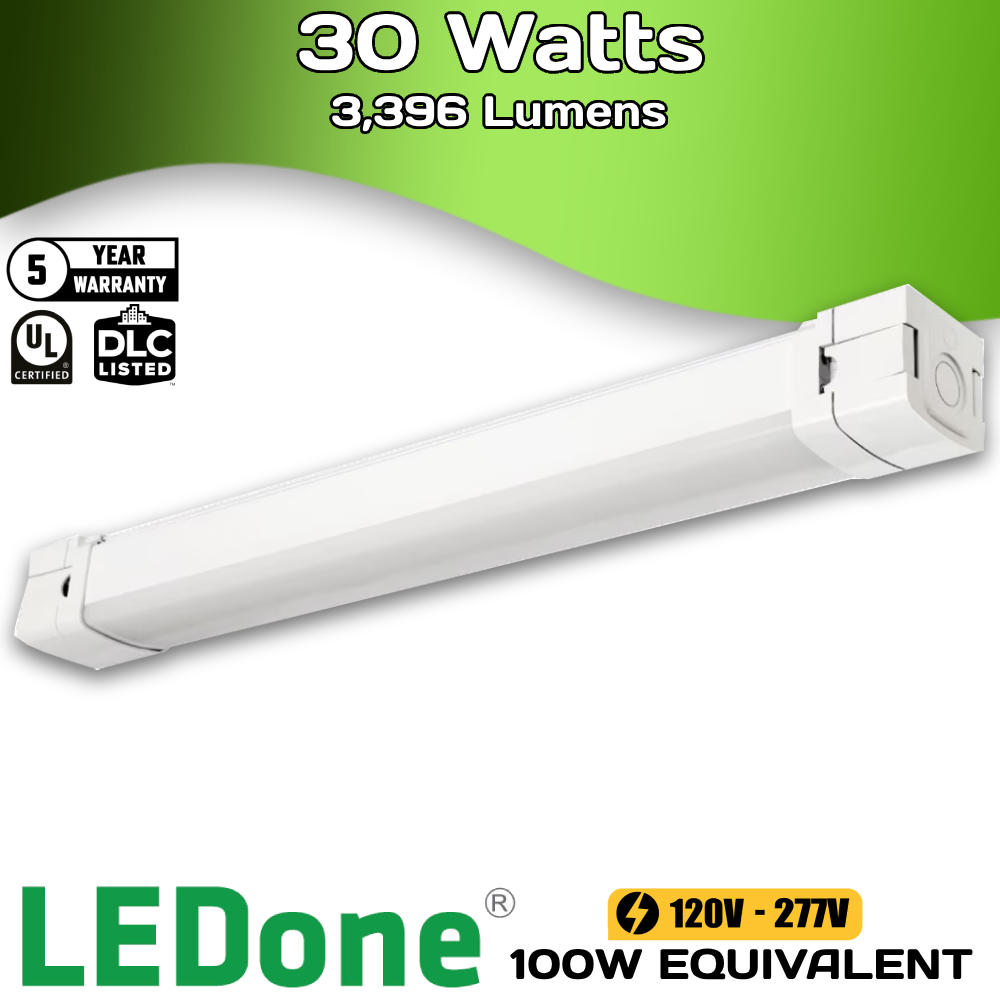

Model: LOC-2FTTPVT-MW(20/25/30)MCCT(35/40/50)D
-
Length: 2 FT
-
Selectable Wattage: 20W / 25W / 30W
-
Selectable CCT: 3500K / 4000K / 5000K
-
Max Lumens: 3,396 lm
-
Efficacy: 113.2 lm/W
-
Voltage: 120–277V
-
CRI: 80
-
Power Factor: ≥ 0.9
-
THD: ≤ 20%
-
Dimming: 0–10V

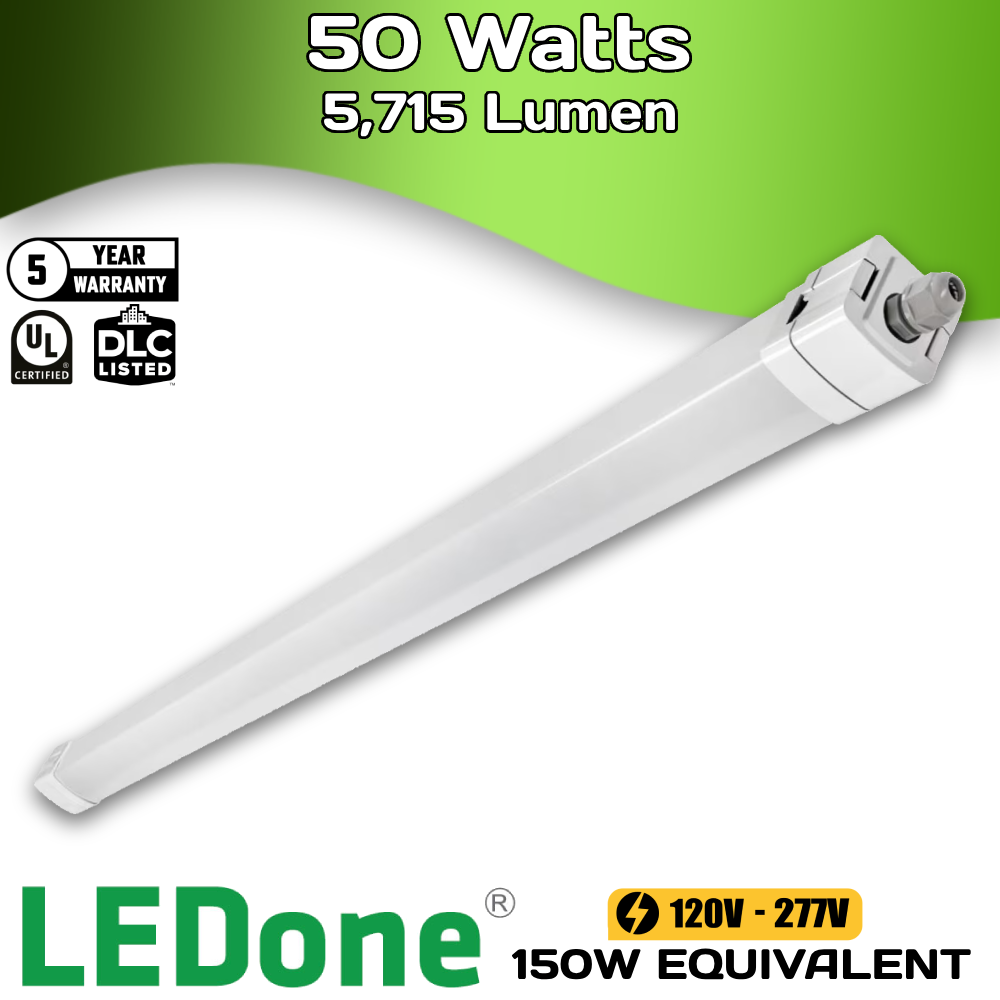

Model: LOC-4FTTPVT-MW(30/40/50)MCCT(35/40/50)D
-
Length: 4 FT
-
Selectable Wattage: 30W / 40W / 50W
-
Selectable CCT: 3500K / 4000K / 5000K
-
Max Lumens: 5,715 lm
-
Efficacy: 114.3 lm/W
-
Voltage: 120–277V
-
CRI: 80
-
Power Factor: ≥ 0.9
-
THD: ≤ 20%
-
Dimming: 0–10V
Model: LOC-4FTTPVT-MW(30/40/50)MCCT(35/40/50)D-MS (with Motion Sensor)
-
Length: 4 FT
-
Selectable Wattage: 30W / 40W / 50W
-
Selectable CCT: 3500K / 4000K / 5000K
-
Max Lumens: 5,715 lm
-
Efficacy: 114.3 lm/W
-
Voltage: 120–277V
-
CRI: 80
-
Power Factor: ≥ 0.9
-
THD: ≤ 20%
-
Dimming: 0–10V
-
Additional Feature: Integrated motion sensor (compatible with LOC-RC-WHITE-G1 remote)
Model: LOC-8FTTPVT-MW(60/80/100)MCCT(35/40/50)D
-
Length: 8 FT
-
Selectable Wattage: 60W / 80W / 100W
-
Selectable CCT: 3500K / 4000K / 5000K
-
Max Lumens: 11,442 lm
-
Efficacy: 114.4 lm/W
-
Voltage: 120–277V
-
CRI: 80
-
Power Factor: ≥ 0.9
-
THD: ≤ 20%
-
Dimming: 0–10V
