Description

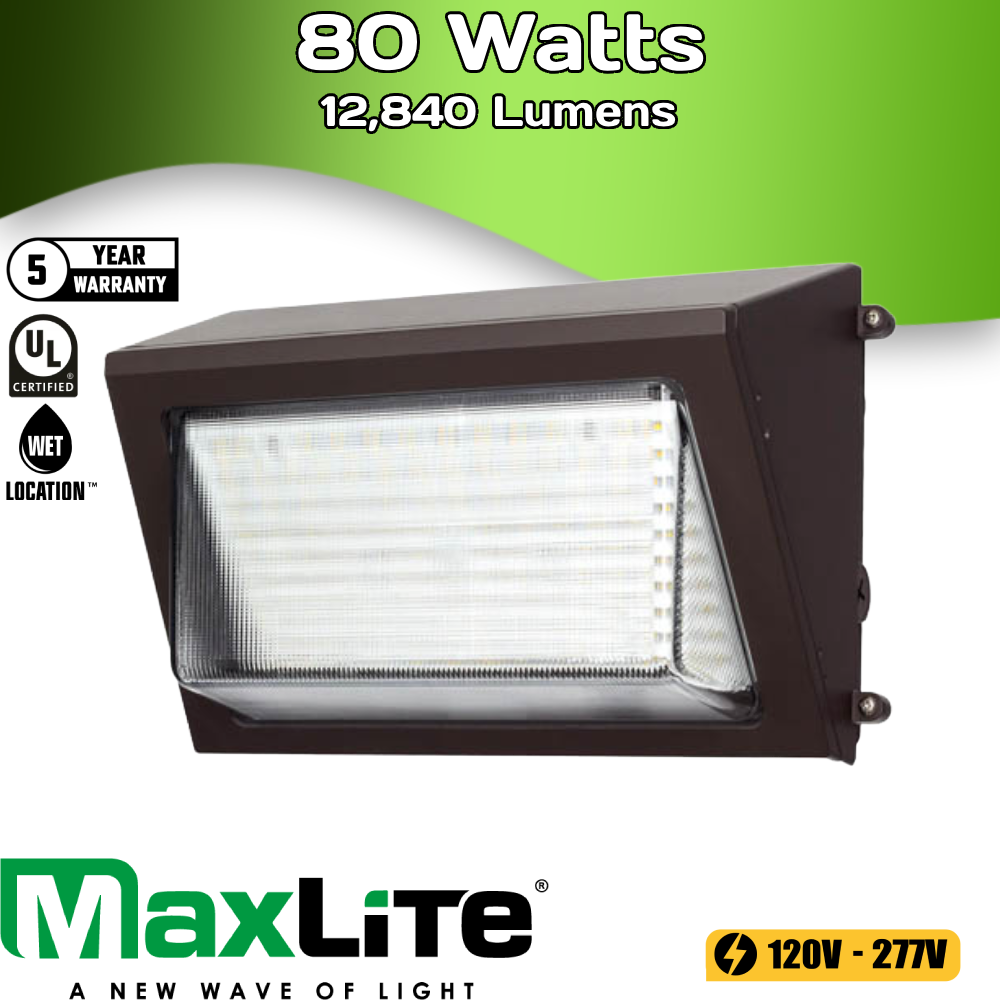

The WallMax Compact Open Face Series from MaxLite delivers a powerful, cost-effective solution for general wall lighting applications. Designed for flexibility and durability, this luminaire combines wattage and CCT selectability with a standard photocell for maximum control and performance. Whether illuminating building exteriors, walkways, or perimeters, the WallMax offers dependable, high-quality lighting that meets the demands of commercial and industrial environments.
Key Features
-
Wattage Selectable:
-
40W Model: 28W / 35W / 40W
-
60W Model: 40W / 50W / 60W
-
80W Model: 60W / 70W / 80W
-
-
CCT Selectable: Choose from 3000K, 4000K, or 5000K color temperatures.
-
Integrated Photocell: Standard on all models (On/Off functionality).
-
0-10V Dimming: Smooth, flicker-free dimming for adaptable lighting control.
-
Universal Voltage: 120–277V for easy installation across multiple applications.
-
Optional Battery Backup: Cold-weather rated to –20°C for reliable emergency performance.
-
Field Installable c-Max Receptacle: Add advanced control options with c-Max plug-and-play sensors (accessory required).
-
6kV Surge Protection for long-term reliability.
-
High CRI (≥80): Ensures true color rendering and visibility.
-
Efficacy: Up to 160 lumens per watt for maximum energy savings.
-
Lumen Output:
-
40W: Up to 6,580 lumens
-
60W: Up to 9,470 lumens
-
80W: Up to 12,840 lumens
-
Built for Performance
Crafted from rugged die-cast aluminum with a corrosion-resistant polyester powder coat finish, the WallMax is made to withstand harsh outdoor conditions. Its impact-resistant prismatic borosilicate glass lens ensures durability while maintaining excellent light distribution. With an IP65 rating, the fixture is fully sealed against dust and water intrusion, making it ideal for wet locations.
Applications
-
Building façades
-
Security and perimeter lighting
-
Walkways and parking areas
-
Entrances and loading zones
-
Warehouses and commercial exteriors
Certifications & Warranty
-
UL Listed for Wet Locations
-
DLC 5.1 Premium Qualified
-
FCC Compliant
-
5-Year Limited Warranty
