Description

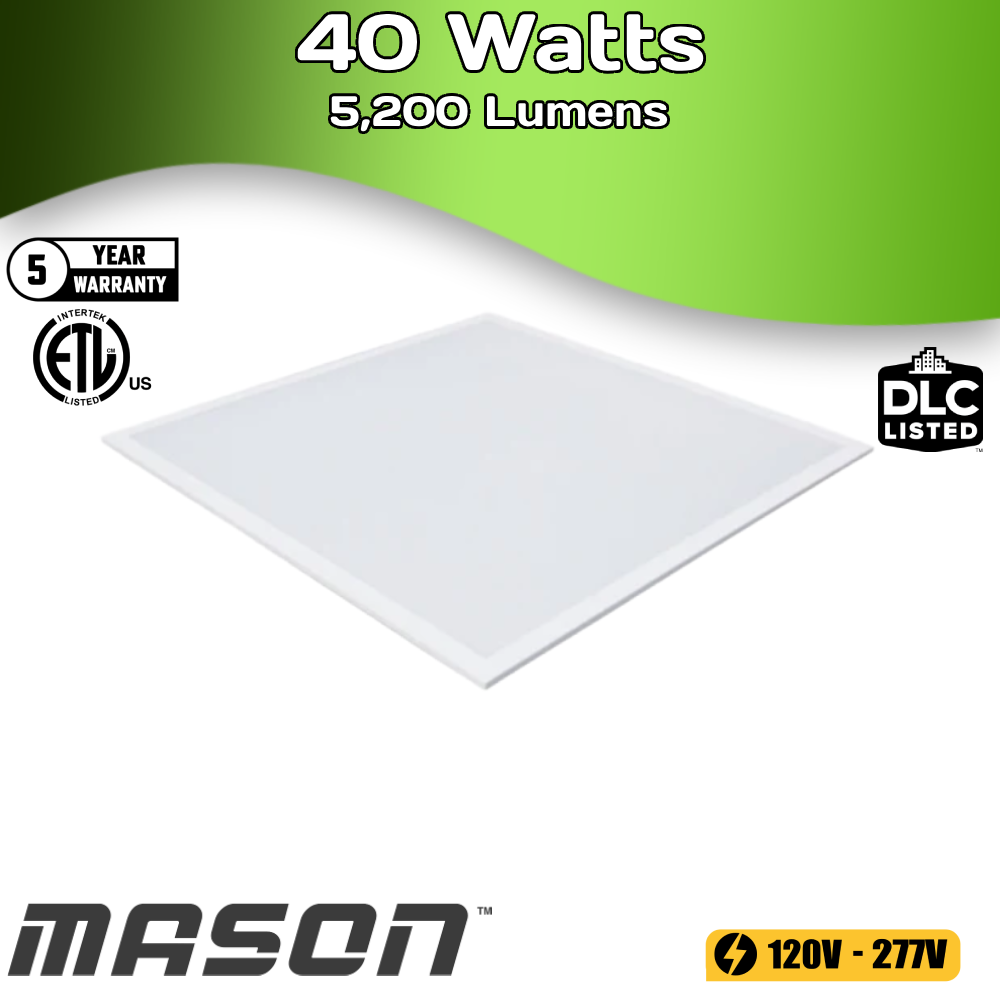

Upgrade your space with this high-performance 2x2 LED Back-Lit Flat Panel, designed to deliver superior brightness, energy efficiency, and long-lasting reliability. Built with a lightweight yet durable aluminum and PC housing, this panel is the perfect replacement for traditional fluorescent troffers in commercial and professional environments.
Featuring 5 selectable color temperatures (3500K / 4000K / 5000K / 5700K / 6500K) and 5 selectable lumen packages (1,950 – 5,200 lumens), this versatile fixture allows you to customize both brightness and color to suit your application. Whether you need warm neutral lighting for offices or crisp daylight illumination for retail or healthcare spaces, this panel adapts to your needs.
| Attribute | Specification |
|---|---|
| Product Type | 2x2 LED Back-Lit Flat Panel |
| SKU | PL22405W5Cbtt |
| Wattage Options | 15W / 20W / 25W / 30W / 40W (Selectable) |
| Lumen Output | 1,950 / 2,600 / 3,250 / 3,900 / 5,200 Lumens |
| Color Temperature | 3500K / 4000K / 5000K / 5700K / 6500K (5CCT Tunable) |
| Voltage Options | 120-277V (AV) / 120-347V (CV) |
| Dimming | 0-10V Dimmable |
| Control Options | Regular (0-10V) / Sensor (S) / Bluetooth (B) |
| CRI | Ra83 |
| Beam Angle | 113° |
| Rated Life | 50,000 Hours |
| Operating Temperature | -4°F to 113°F |
| Housing Material | Aluminum + PC |
| Mounting Options | Recessed / Surface Mount / Suspended |
| Damp Location Rated | Yes |
| DLC Listed | Yes |
| Warranty | 5 Years |
| Dimensions | 25.5" x 25.5" x 6.3" |
| Weight | 13.3 kgs |
| Packaging | 4 pcs per carton |
| Optional Accessories |
Surface Mount Kit (MSSMK-22) / 5FT Suspension Kit (MSCSK-5FT) |
Ideal Applications:
-
Offices
-
Schools
-
Healthcare facilities
-
Retail stores
-
Commercial buildings
-
Conference rooms
