| Model Numbers |
LOC-4FTT8AB-17W40KFD (4000K) / LOC-4FTT8AB-17W50KFD (5000K) |
| Wattage |
17W |
| Lumens |
2,500 lm |
| Efficacy |
147.059 lm/W |
| Color Temperature Options |
4000K / 5000K |
| CRI |
80 |
| Beam Angle |
200° beam / 300° view |
| Input Voltage |
120–277V |
| Power Factor |
0.9 |
| THD |
20% |
| Dimmable |
No |

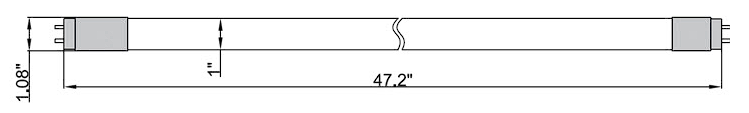

| Tube Length |
4FT |
| Base Type |
G13 |
| Lens |
Frosted |
| Housing |
Shatterproof glass with PET film |
| Operating Temperature |
-20°C to 50°C (-4°F to 122°F) |
| Lifetime |
50,000 hours |
| Wattage Equivalent |
32W – 36W Fluorescent / HID |
| Installation Type |
Type A + B (Plug & Play + Bypass) |
| Compatibility |
Single-ended OR double-ended • Works with shunted & non-shunted sockets |
| Enclosed Fixture Rated |
No — not suitable for enclosed fixtures |
| Certifications |
DLC Listed, NSF Rated (Splash Zone & Non-Food Zone), UL, FCC, CE, RoHS |
| Weight |
0.526 lbs |
| Warranty |
5-Year Limited |
| Chip Type |
Bridgelux or Samsung 2835 LEDs |
| Applications |
Offices, hospitals, hotels, schools, supermarkets, factories, conference rooms, commercial buildings, airports |
| Optional Accessory |
LOC-EMDR-25WHV Emergency Battery |
