Description
Key Features
-

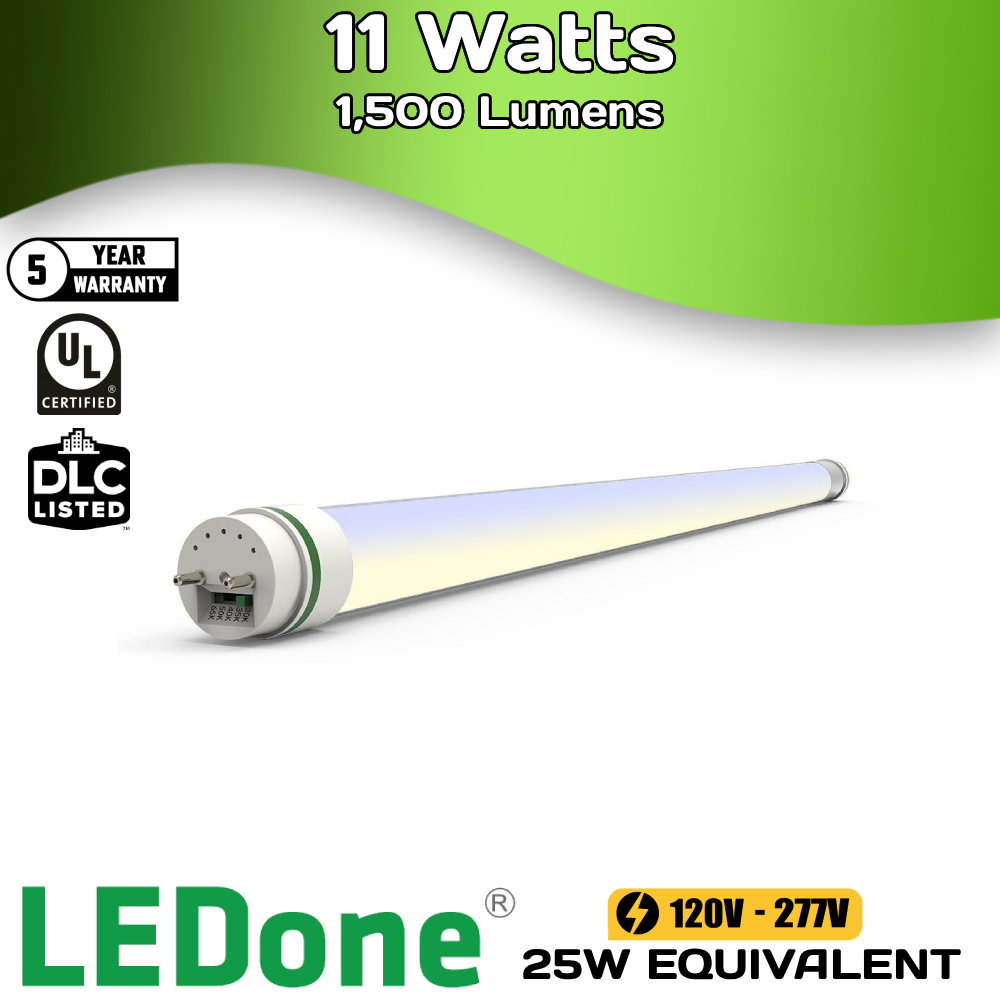

Selectable CCT: Choose from 3000K–6500K, with a default of 6500K for crisp, bright light.
-
High Efficiency: Delivers 1,500 lumens at 136 lm/W using premium Bridgelux 2835 chips.
-
Versatile Installation: Type B single-ended or double-ended; compatible with shunted and non-shunted sockets.
-
Wide Beam Angle: 240° coverage for broad, even illumination.
-
Durable Build: Glass body with soft light output and a clear lens for maximum brightness.
-
Long Lifespan: Rated for 50,000 hours, with no mercury or UV.
-
Enclosed Fixture Ready: Safe for use in fully enclosed fixtures (IP20 rated).
-
Energy-Saving Replacement: Ideal upgrade for 25W–28W fluorescent T8 tubes.
-
Reliable Performance: Power factor ≥0.9, THD ≤20%, and backed by a 5-year warranty.
| Attribute | Details |
|---|---|
| Model | LOC-3FTT8-11WMCCT(30/35/40/50/65) B |
| Wattage | 11W |
| Selectable CCT | 3000K / 3500K / 4000K / 5000K / 6500K |
| Lumens | 1,500 lm |
| Efficacy | 136 lm/W |
| Voltage | 120–277V |
| CRI | 80 |
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Beam Angle | 240° |
| Chip Type | Bridgelux 2835 |
| Construction | Glass body with soft light |
| Lens | Clear |
| Default CCT | 6500K |
| Installation | Type B Single-Ended & Double-Ended |
| Socket Compatibility | Works with shunted & non-shunted sockets |
| Rated Lifetime | 50,000 hours |
| IP Rating | IP20 |
| Enclosed Fixture Rated | Yes (suitable for enclosed fixtures) |
| Mercury/UV | None |
| Operating Temp | -20°C to 45°C (-4°F to 113°F) |
| Warranty | 5-year limited warranty |
| UPC Code | 00810050942355 |
| Weight | 0.39 lbs |
| Replaces | 25W–28W fluorescent T8 |
| DLC Product ID | S-X1R0YE |
