Description
The LOC-FL Family Series LED Flood Light delivers high-performance outdoor illumination with selectable wattage and selectable color temperature for maximum flexibility. Designed with a durable aluminum housing, tempered glass optics, and an IP65 weatherproof rating, these flood lights are built to handle demanding commercial and industrial environments.
Featuring built-in photocell functionality, 0-10V dimming, and up to 150 lumens per watt efficacy, the LOC-FL series provides powerful, energy-efficient lighting while reducing maintenance and operating costs. Available in multiple wattage configurations ranging from 15W to 450W, these fixtures are ideal for parking lots, warehouses, stadiums, factories, shopping centers, dealerships, and other large outdoor applications.
| Model | Selectable Wattages | Selectable CCT | Lumens Output | Efficacy | Voltage | CRI | Power Factor | HID Replacement | Weight |
|---|---|---|---|---|---|---|---|---|---|

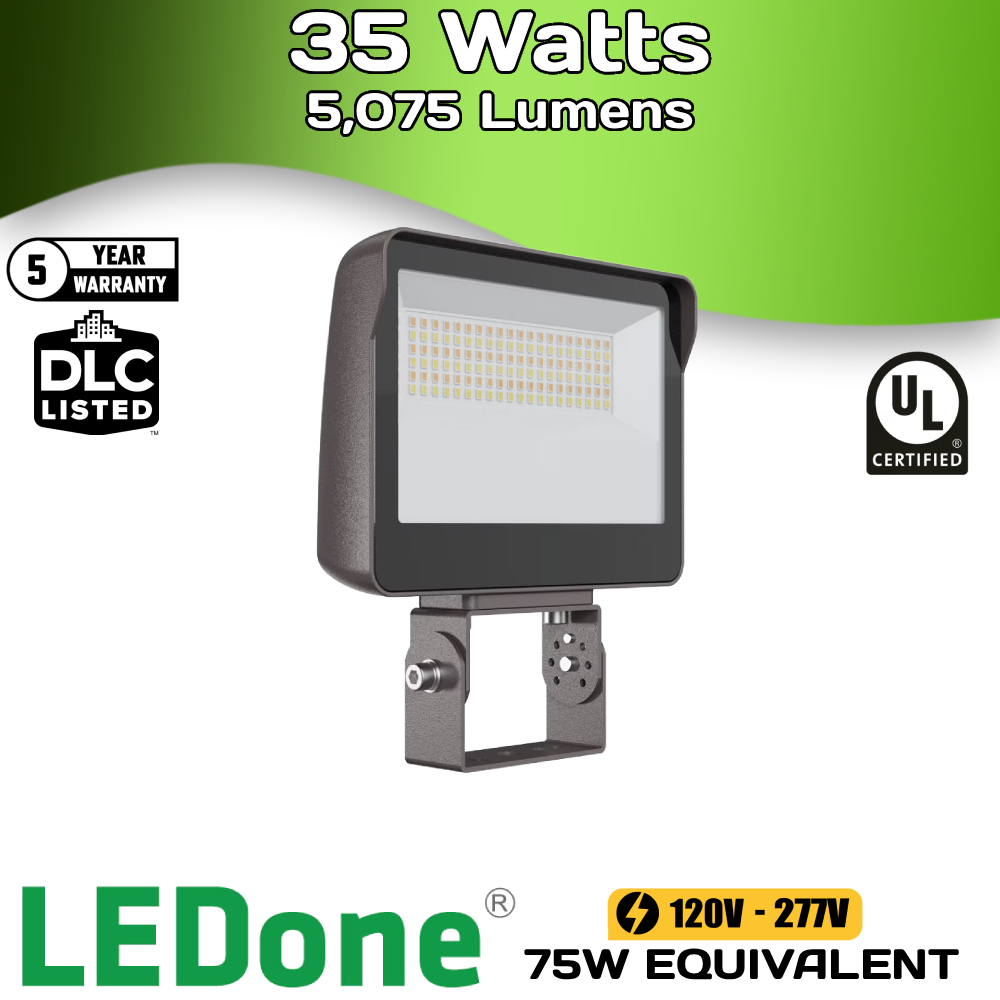

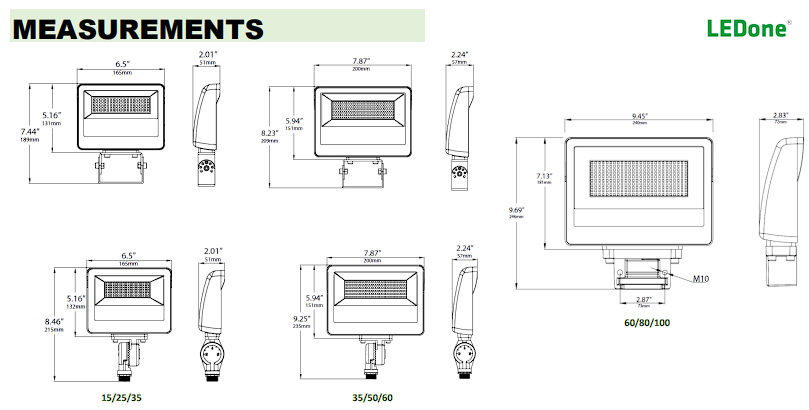

| LOC-FL-MW(15/25/35)MCCT(30/40/50)D | 15W / 25W / 35W | 3000K / 4000K / 5000K | 2,175 – 5,075 LM | 145 lm/W | 120-277V | 80 | 0.9 | 50W – 75W HID | 2.2 lbs |
| LOC-FL-MW(35/50/60)MCCT(30/40/50)D | 35W / 50W / 60W | 3000K / 4000K / 5000K | 5,075 – 8,700 LM | 145 lm/W | 120-277V | 80 | 0.9 | 100W – 150W HID | 2.87 lbs |

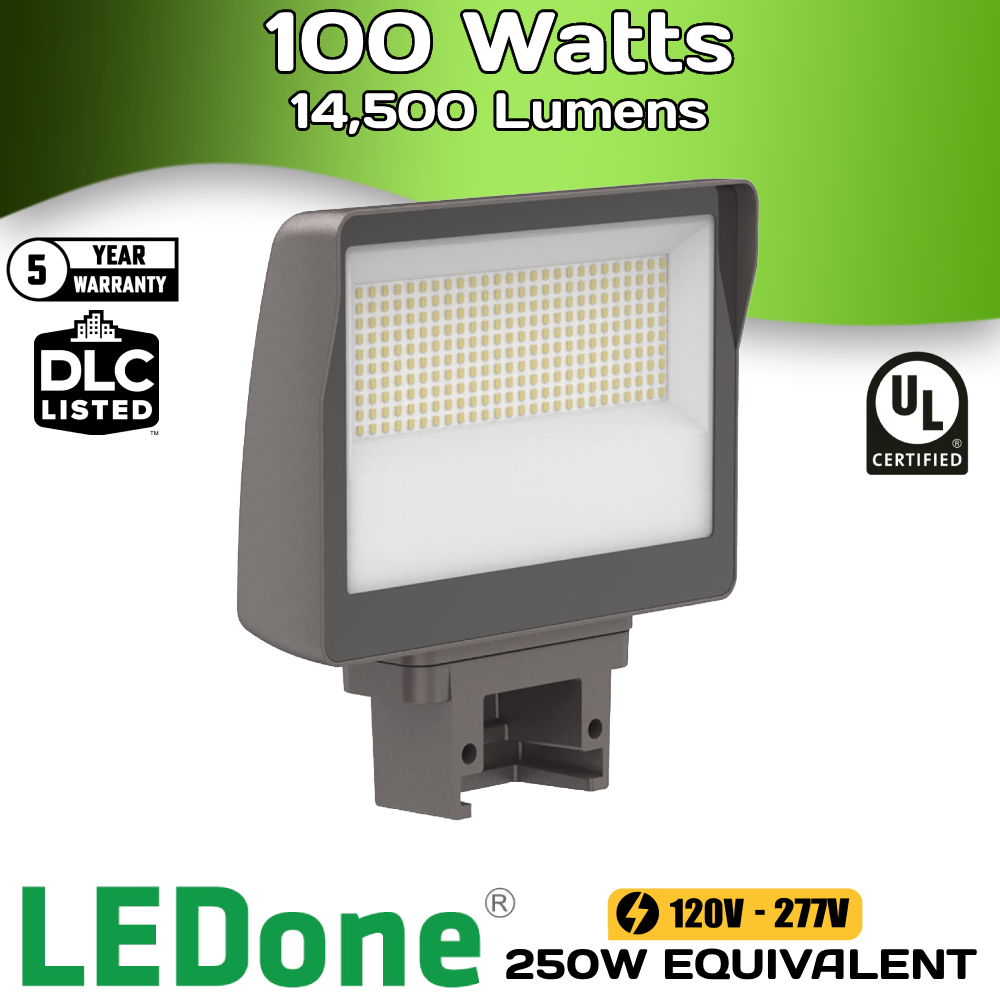

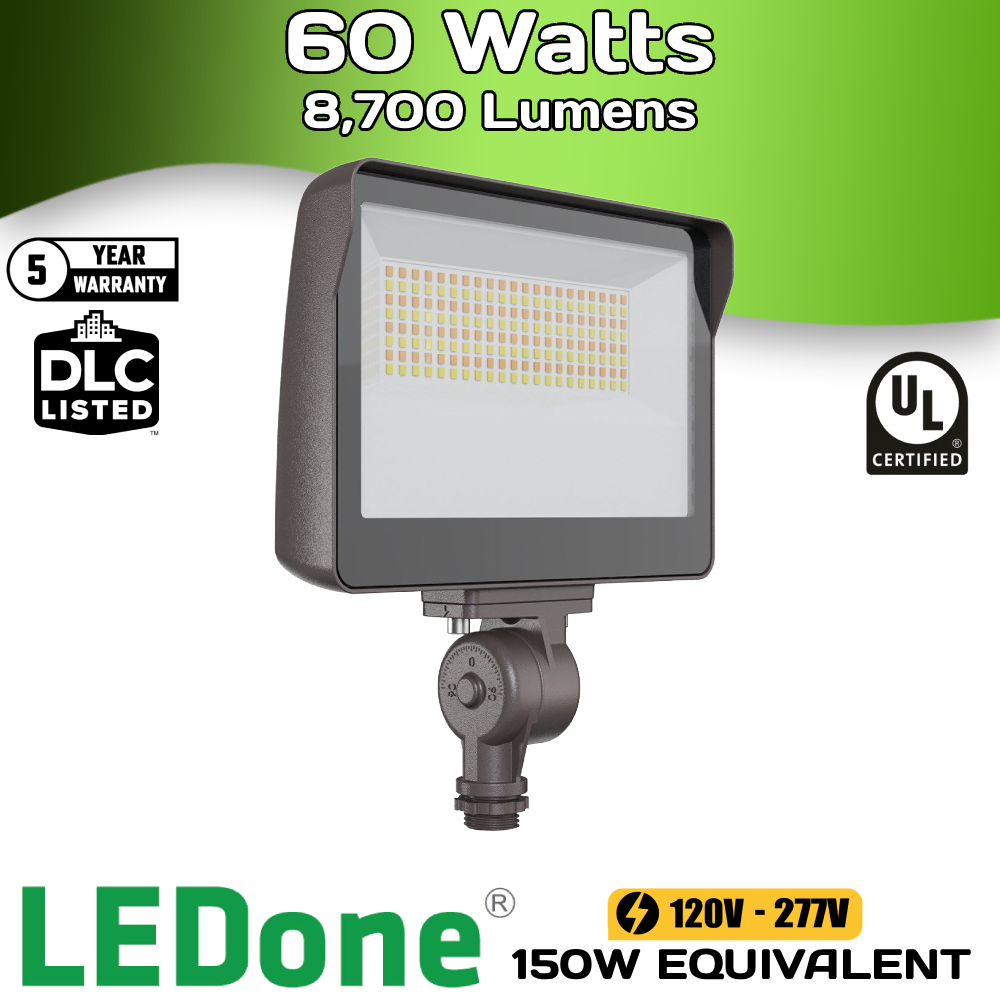

| LOC-FL-MW(60/80/100)MCCT(30/40/50)D | 60W / 80W / 100W | 3000K / 4000K / 5000K | 8,700 – 14,500 LM | 145 lm/W | 120-277V | 80 | 0.9 | 150W – 250W HID | 5.73 lbs |

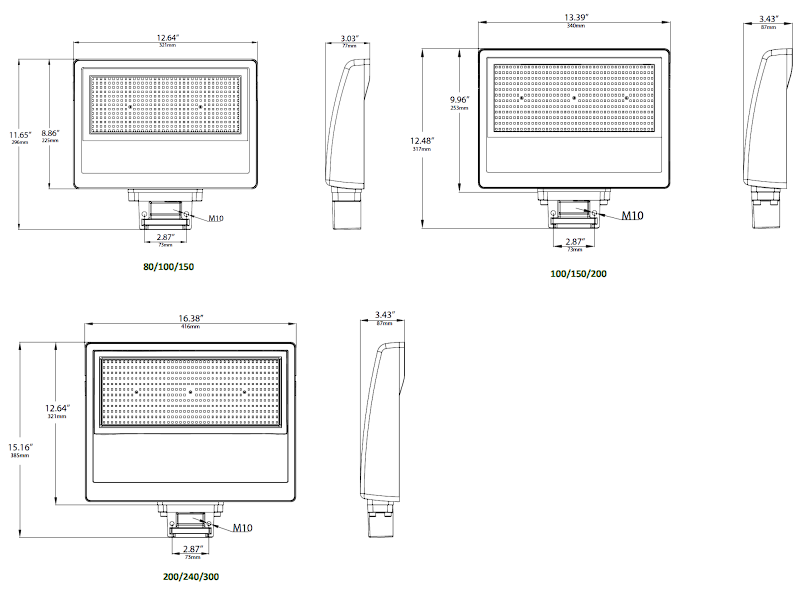

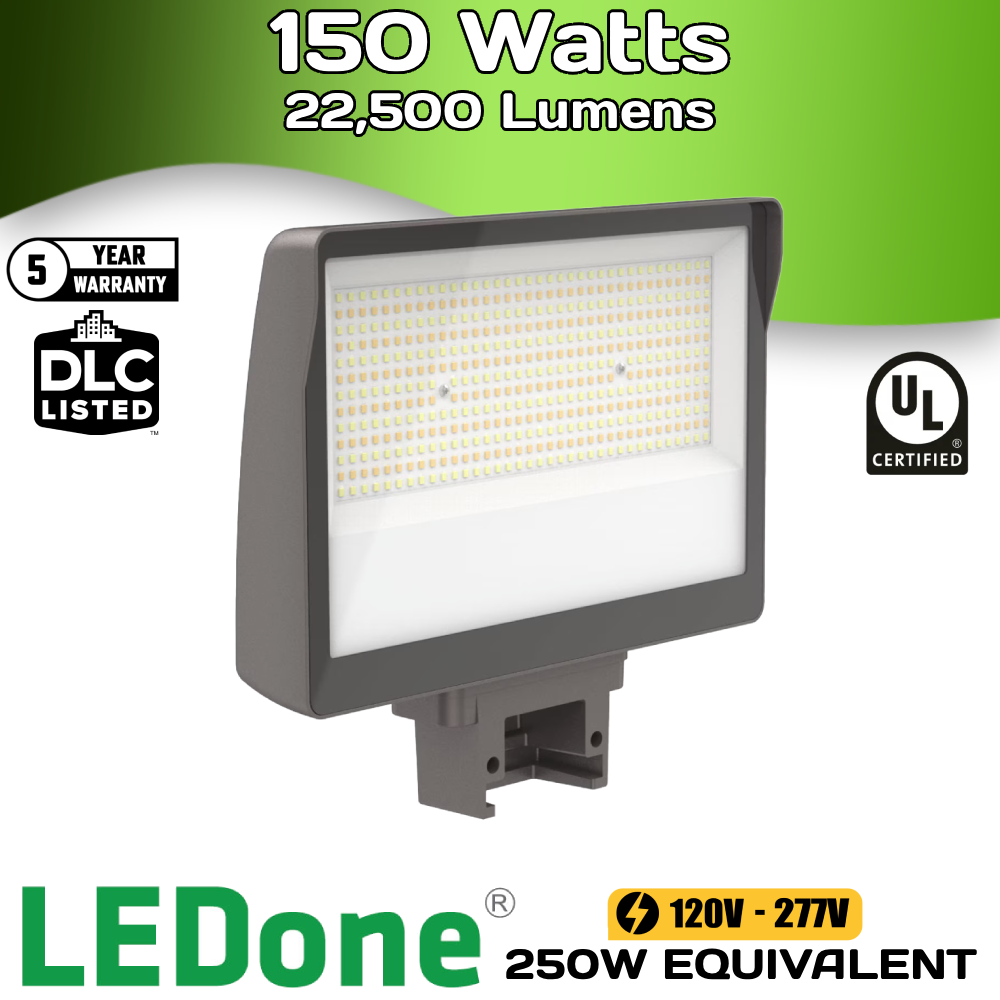

| LOC-FL-MW(80/100/150)MCCT(30/40/50)D | 80W / 100W / 150W | 3000K / 4000K / 5000K | 12,000 – 22,500 LM | 150 lm/W | 120-277V | 80 | 0.9 | 175W – 400W HID | 8.16 lbs |
| LOC-FL-MW(100/150/200)MCCT(30/40/50)D | 100W / 150W / 200W | 3000K / 4000K / 5000K | 15,000 – 30,000 LM | 150 lm/W | 120-277V | 80 | 0.9 | 250W – 600W HID | 10.58 lbs |

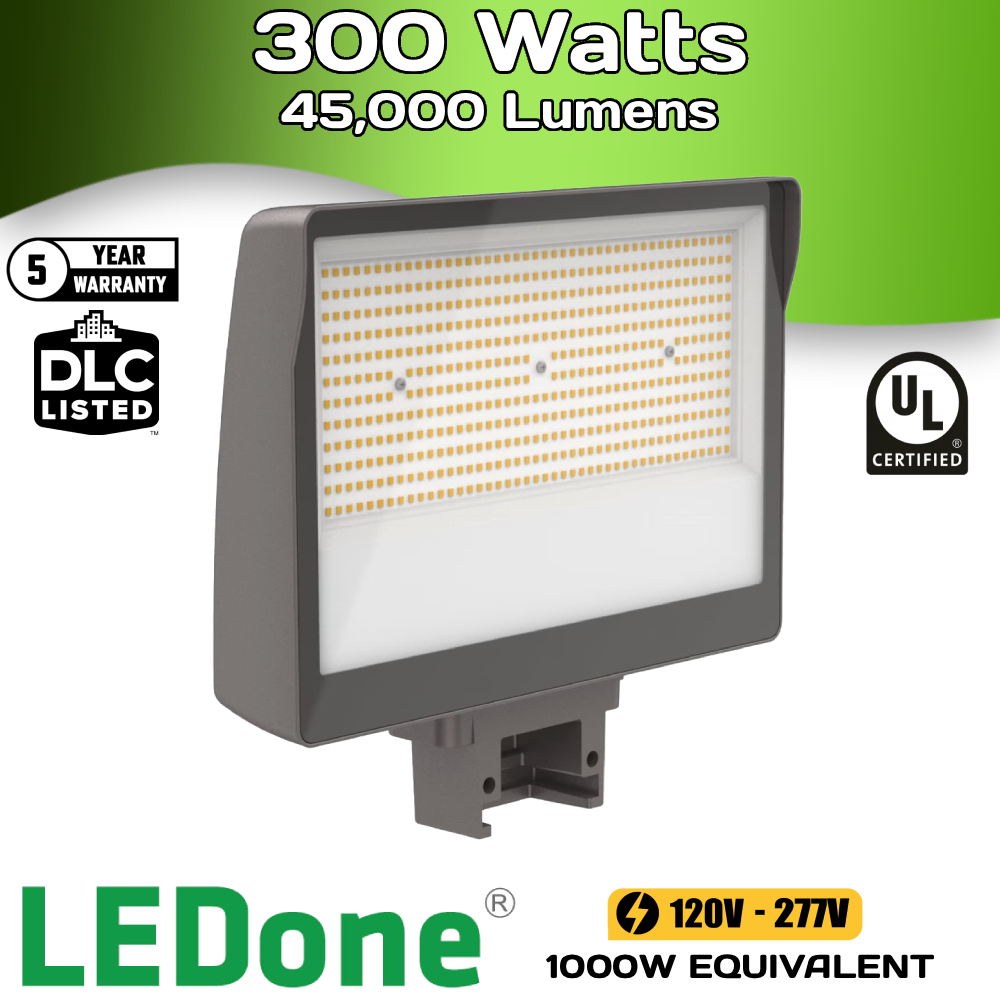

| LOC-FL-MW(200/240/300)MCCT(30/40/50)D | 200W / 240W / 300W | 3000K / 4000K / 5000K | 30,000 – 45,000 LM | 150 lm/W | 120-277V | 80 | 0.9 | 600W – 1000W HID | 14.33 lbs |

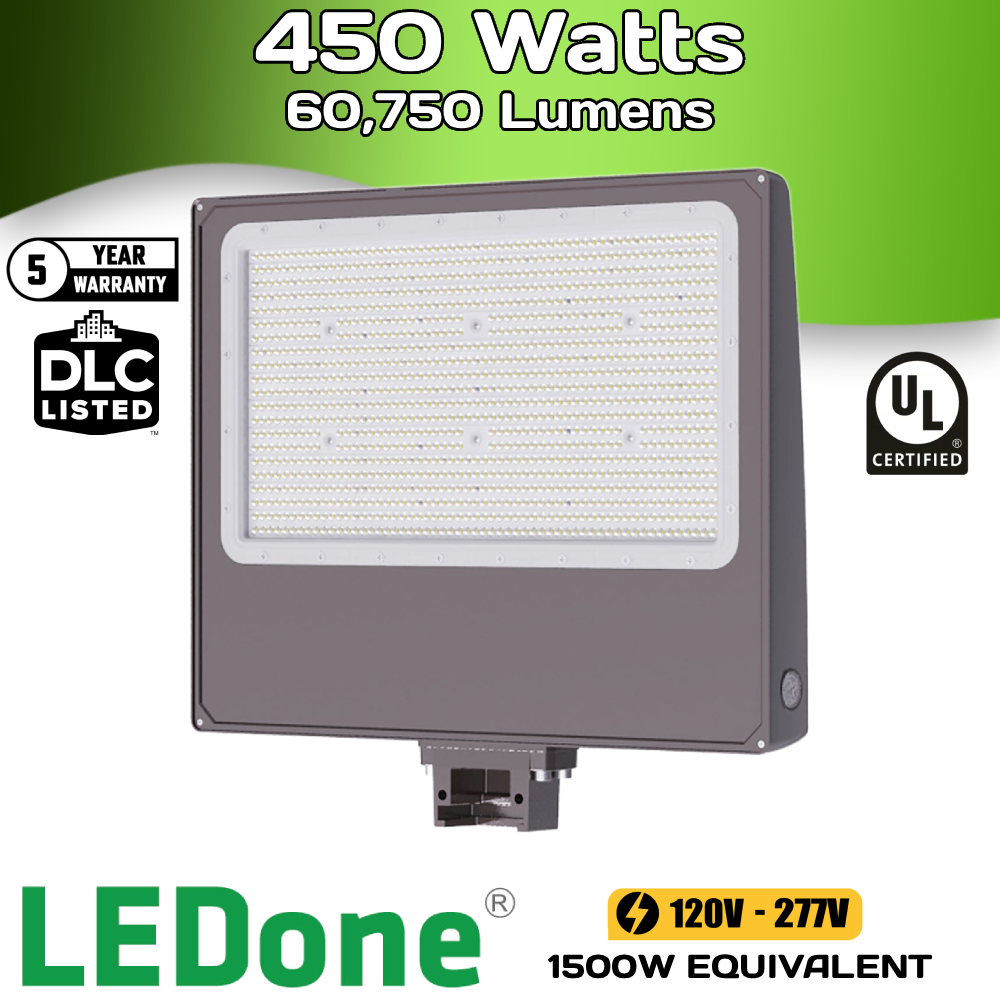

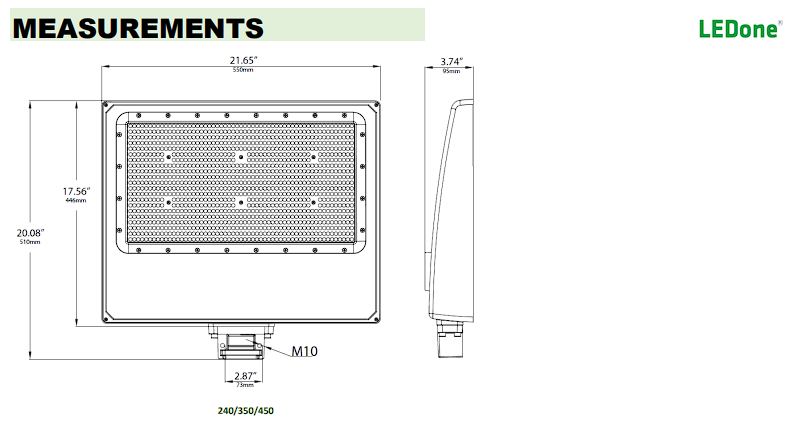

| LOC-FL-MW(240/350/450)MCCT(30/40/50)D | 240W / 350W / 450W | 3000K / 4000K / 5000K | 32,400 – 60,750 LM | 135 lm/W | 120-277V | 80 | 0.9 | 1000W – 1500W HID | 29.76 lbs |
