Description
Key Features:
✔ Selectable Wattage Options: 30W / 40W / 50W
✔ Adjustable Color Temperature (CCT): 3500K / 4000K / 5000K
✔ High Luminous Efficacy: Up to 142.68 lm/W
✔ Built-in Sensor Base for enhanced energy efficiency
✔ Durable Construction: SPCC housing with matte white finish & PC frosted lens
✔ 120° Beam Angle for wide light distribution
✔ IP20 Rated: Ideal for indoor applications
✔ Long Lifespan: 50,000 hours
✔ 0-10V Dimming Standard
✔ Multiple Mounting Options: Suspension or surface mounting
✔ Available in Two Models: Standard 5-inch width and wider 10-inch width

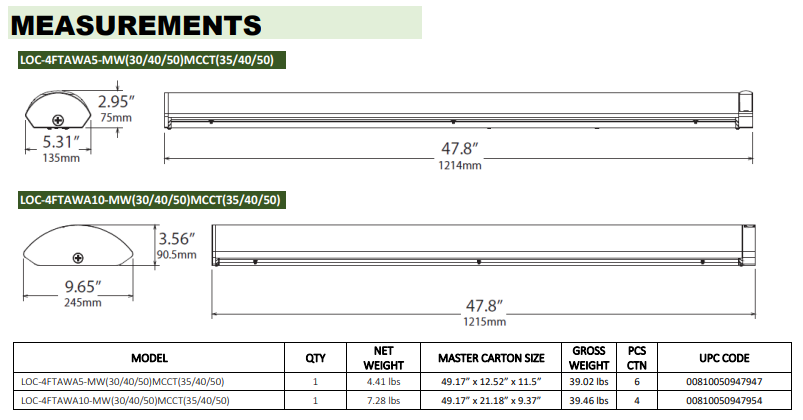

Product Specifications
| Specification | LOC-4FTAWA5-MW(30/40/50)MCCT(35/40/50) | LOC-4FTAWA10-MW(30/40/50)MCCT(35/40/50) |
|---|---|---|
| Wattage Selectable | 30W / 40W / 50W | 30W / 40W / 50W |
| CCT Selectable | 3500K / 4000K / 5000K | 3500K / 4000K / 5000K |
| Lumen Output | 30W – 4,245 LM 40W – 5,660 LM 50W – 7,075 LM |
30W – 4,280 LM 40W – 5,707 LM 50W – 7,134 LM |
| Efficacy | 141.5 lm/W | 142.68 lm/W |
| Voltage | 120-277V | 120-277V |
| CRI | 84 | 85 |
| Power Factor | 0.996 | 0.996 |
| Total Harmonic Distortion (THD) | 11.4% | 11.2% |
| Weight | 4.41 lbs | 7.28 lbs |
| UPC Code | 00810050947947 | 00810050947954 |
Applications:
✔ Retail & Grocery Stores – Bright, uniform lighting for enhanced visibility
✔ Parking Garages & Corridors – Energy-efficient and long-lasting illumination
✔ Warehouses & Storage Facilities – High-performance lighting for productivity
✔ Supermarkets & Commercial Spaces – Customizable wattage & color temperature
