Description
Built with a durable white powder-coated sheet metal housing and frosted PC lens, this fixture is engineered for long-lasting performance with a 50,000-hour lifespan. The integrated sensor base allows for easy smart sensor upgrades, while 0-10V dimming capability provides additional lighting control. Easy to install and maintain, this LED linear high bay is ideal for demanding commercial environments.
Product Attributes
| Feature | 2FT Linear High Bay | 4FT Linear High Bay |
|---|---|---|
| Model | LOC-2FTHLHB-MW170W3CCT | LOC-4FTHLHB-MW310W3CCT |
| Fixture Size | 2 Foot | 4 Foot |
| Wattage Selectable | 130W / 155W / 170W | 230W / 270W / 310W |
| Lumens | 19,500LM / 23,250LM / 25,500LM | 34,500LM / 40,500LM / 46,500LM |
| Efficacy | 150 lm/W | 150 lm/W |
| CCT Selectable | 3500K / 4000K / 5000K | 3500K / 4000K / 5000K |
| CRI | 80 | 80 |
| Voltage | 120V-277V | 120V-277V |
| Power Factor | 0.97 | 0.97 |
| THD | 10% | 10% |
| Beam Angle | 95° | 95° |
| Dimming | 0-10V Dimmable | 0-10V Dimmable |
| Lifespan | 50,000 Hours | 50,000 Hours |
| Operating Temperature | -40°F to 122°F | -40°F to 122°F |
| Housing Material | White Powder-Coated Sheet Metal | White Powder-Coated Sheet Metal |
| Lens | Frosted PC Lens | Frosted PC Lens |
| Mounting Options | V-Hook & Chain / Pendant / Surface Mount | V-Hook & Chain / Pendant / Surface Mount |
| Sensor Ready | Built-in Sensor Base | Built-in Sensor Base |
| Equivalent Replacement | Replaces up to 400W Metal Halide | Replaces up to 1000W Metal Halide |
| DLC Product ID | S-X4XTKP | S-VHM1KZ |
| Net Weight | 7.72 lbs | 12.26 lbs |

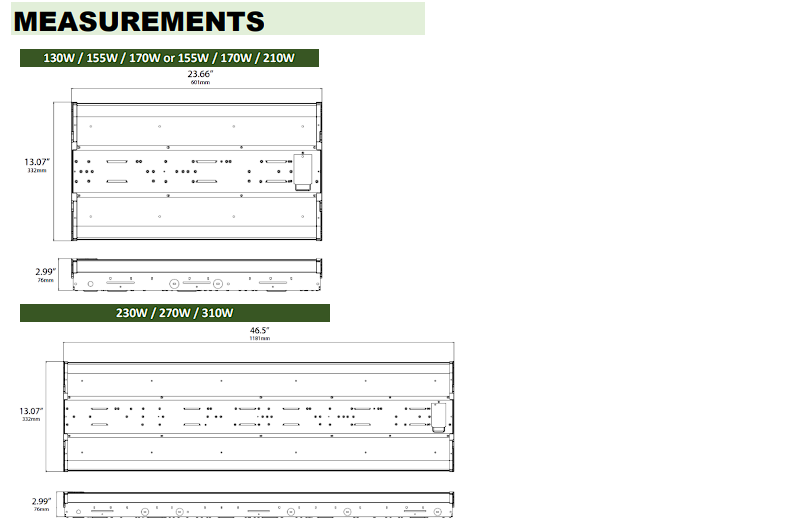

| Dimensions | 24.45” x 14.33” x 3.62” | 47.48” x 14.33” x 3.62” |
| Warranty | 5-Year Limited Warranty | 5-Year Limited Warranty |
