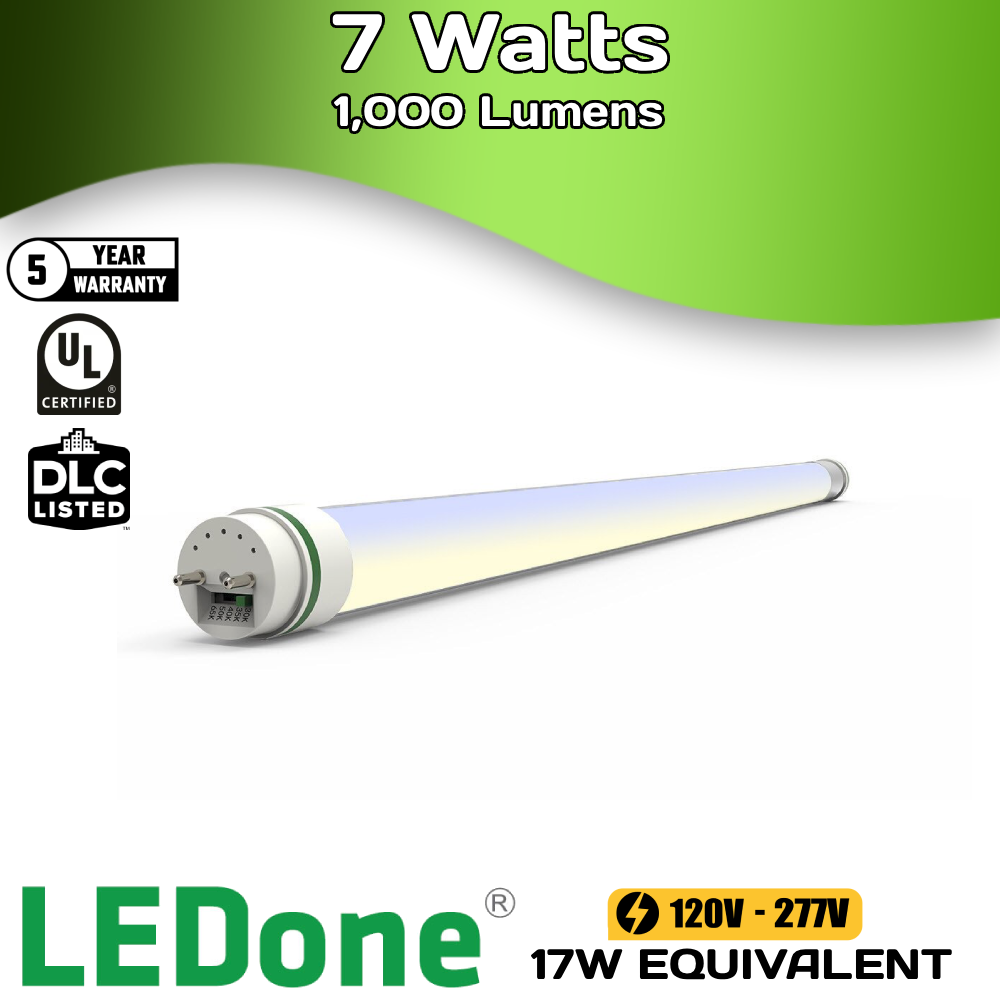

Description
Key Features
-
Selectable CCT: Adjustable 3000K–6500K light output for any environment.
-
High Efficiency: Produces 1,000 lumens at an impressive 142 lm/W using Bridgelux 2835 LEDs.
-
Easy Installation: Type B single-ended or double-ended; compatible with shunted and non-shunted sockets.
-
Wide Beam Spread: 240° illumination for smooth, full-area lighting.
-
Durable Design: Glass body with soft light output; safe for enclosed fixtures (IP20 rated).
-
Long-Lasting: Rated for 50,000 hours with no mercury or UV.
-
Energy-Saving Replacement: Ideal upgrade for 17W fluorescent T8 tubes.
-
Reliable Performance: 120–277V, power factor 0.9, THD 20%, and DLC Listed for quality assurance.
| Attribute | Details |
|---|---|
| Model | LOC-2FTT8-7WMCCT(30/35/40/50/65)B |
| Wattage | 7W |
| CCT (Selectable) | 3000K / 3500K / 4000K / 5000K / 6500K |
| Lumen Output | 1,000 lumens |
| Efficacy | 142 lm/W |
| Voltage | 120–277V |
| CRI | 80 |
| Power Factor | 0.9 |
| THD | 20% |
| Beam Angle | 240° |
| Construction | Glass body with soft light |
| LED Chip | Bridgelux 2835 |
| Installation | Type B — Single or Double Ended |
| Socket Compatibility | Works with shunted & non-shunted |
| Enclosed Fixture Rated | Yes |
| IP Rating | IP20 |
| Lifetime | 50,000 hours |
| Operating Temp | -4°F to 113°F (-20°C to 45°C) |
| Certifications | DLC Listed, No Mercury/UV |
| Applications | Commercial buildings, schools, hospitals, hotels, supermarkets, offices, airports |
| Weight | 0.24 lbs |
| UPC | 00810050942348 |
| DLC Product ID | S-L1OHB |
| Equivalent Fluorescent | 17W T8 |
