Description
The LOC-MWP Family Series LED Mini Wall Pack Light delivers powerful, energy-efficient outdoor lighting in a compact and durable design. Built with heavy-duty die-cast aluminum housing and a corrosion-resistant polyester powder-coated finish, these wall pack lights are engineered for long-lasting performance in commercial and industrial environments.
Featuring selectable wattages from 8W to 25W and selectable color temperatures of 3000K, 4000K, and 5000K, the LOC-MWP series provides flexible lighting solutions for a wide range of applications. The built-in photocell automatically controls operation from dusk to dawn, helping reduce energy costs and improve convenience.
| Feature | Specification |
|---|---|
| Product Series | LOC-MWP Family Series |
| Product Type | LED Mini Wall Pack Light |
| Wattage Options | 8W / 10W / 15W / 25W |
| Default Wattage | 25W |
| CCT Options | 3000K / 4000K / 5000K |
| Default CCT | 5000K |
| Lumens Output | 1,097 – 3,429 Lumens |
| Efficacy | Up to 140 lm/W |
| Voltage | 120-277V |
| CRI | 71 – 71.3 |
| Power Factor | Up to 0.985 |
| THD | 11.8% – 12% |
| Beam Angle | 125° |
| Lens Type | Frosted Lens |
| Optics | Tempered Glass |
| Housing Material | Heavy Die-Cast Aluminum |
| Finish | Polyester Powder-Coated |
| Color Options | Bronze / White |
| IP Rating | IP65 Rated |
| Dimming | Continuous Dimming to 10% or Below |

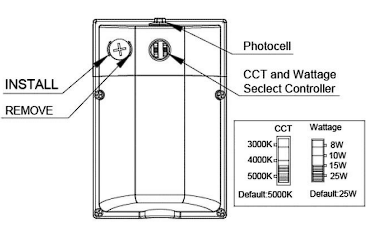

| Controls | Built-In Photocell |
| Mounting Type | Wall Mount with Quick Mount Back Plate |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Lifespan | 50,000 Hours |
| HID Replacement | Replaces 30W–50W HID |
| Certifications | DLC Listed |
| DLC Product ID | S-Z3LOD2 |
| Warranty | 5-Year Limited Warranty |
| Applications | Warehouses, Stadiums, Factories, Parking Lots, Shopping Malls, Supermarkets, Logistic Centers, Auto Dealerships |
| Weight | 2.6 lbs |
| Carton Size | 6" x 4" x 8.75" |
| Pieces Per Carton | 10 |
