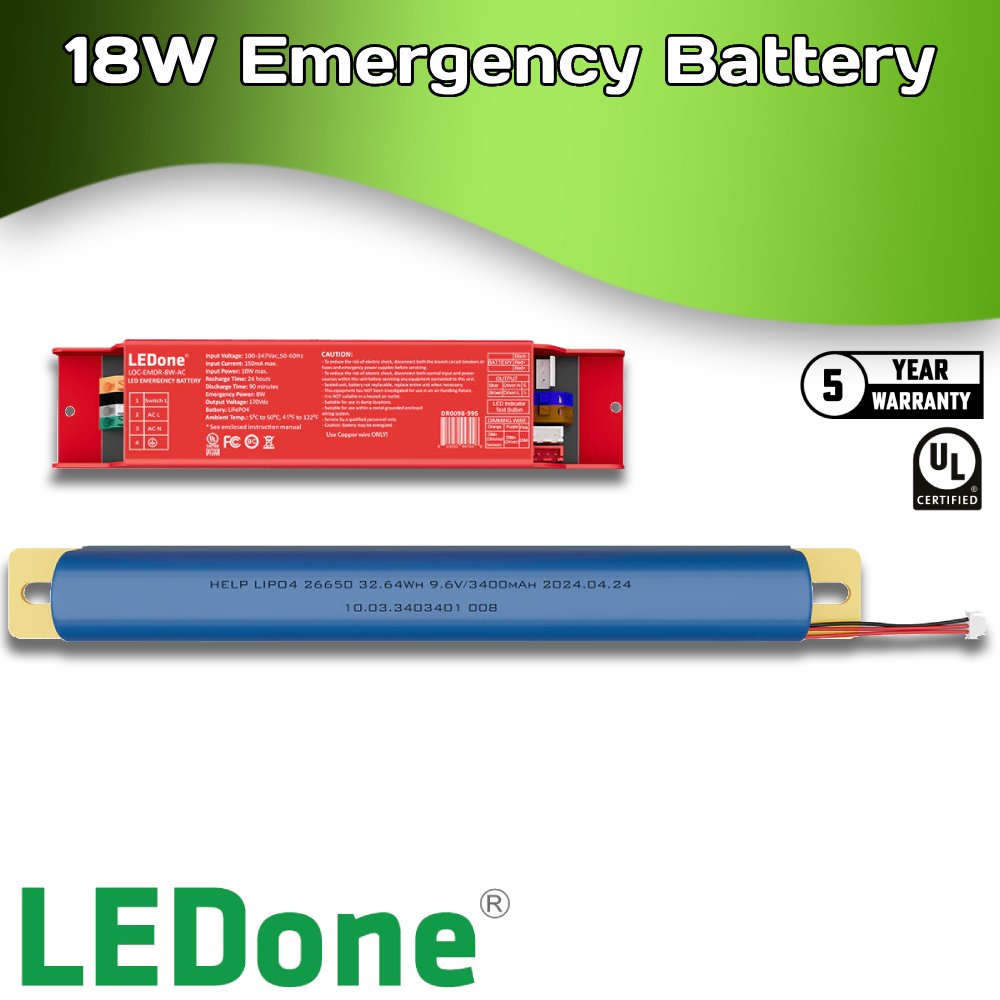

Description
Available Models:
✔ LOC-EMDR-8W-AC – 8W Emergency Power
✔ LOC-EMDR-18W-AC-L – 18W Emergency Power
✔ LOC-EMDR-18W-AC-C – 18W Emergency Power
Key Features:
✅ UL924 & CSA C22.2 NO. 141 Certified – Approved for field or factory installation
✅ Wide Input Voltage Range: 100-347V AC, 50/60Hz compatibility
✅ Emergency Power Output: 8W or 18W max. for up to 90 minutes
✅ High-Performance Battery: Li-ion / LiFePO4 with:
-
Over-temperature protection
-
Overcharge protection
-
Over-discharge protection
✅ Self-Testing & Diagnostics: Automatic monthly & annual emergency tests
✅ CEC Compliant: Energy-efficient with low power consumption
✅ Surge Protection: 3KV line-neutral surge resistance
✅ Compact & Lightweight: Easy to install in new or existing LED fixtures
✅ 5-Year Limited Warranty for long-term reliability
Model Specifications:
| Model | Input Voltage | Input Power | Output Voltage | Emergency Power | Recharge Time | Emergency Runtime | Mounting Height |
|---|---|---|---|---|---|---|---|
| LOC-EMDR-8W-AC | 100-347V AC | 10W max. | 170V DC | 8W max. | 24 hours | 90 minutes | Up to 13.9FT |
| LOC-EMDR-18W-AC-L | 100-347V AC | 10W max. | 170V DC | 18W max. | 24 hours | 90 minutes | Up to 13.9FT |
| LOC-EMDR-18W-AC-C | 100-347V AC | 10W max. | 170V DC | 18W max. | 24 hours | 90 minutes | Up to 13.9FT |
Self-Testing & Indicator Functions:
-
Automatic Monthly Test: A 30-second discharge test every 30 days
-
Annual Full-Cycle Test: A 90-minute full discharge test every 365 days
-
LED Indicator Status:
-
Steady ON – Charging Mode
-
Slow Flashing (2s ON, 2s OFF) – Short-Term (30s) or Long-Term (Full Discharge) Emergency Test
-
Fast Flashing (50ms ON, 50ms OFF) – Abnormal Battery Status – Contact Support
-
