| Product Type |

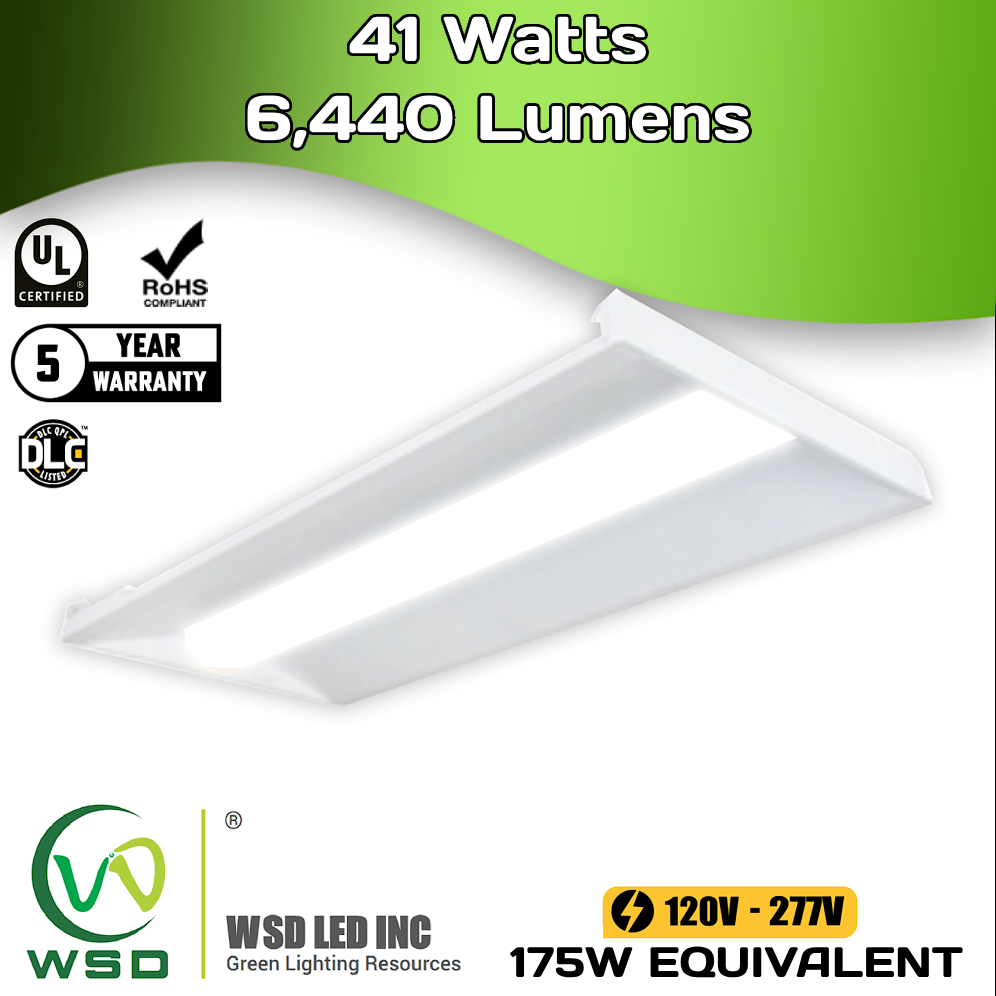

Sensor-Based LED Troffer Light |
| Model |
24TRF20283441W27-5CCT |
| Size |
2×4 FT |
| Wattage Options |
20W / 28W / 34W / 41W |
| Lumen Output |
3,390 / 4,629 / 5,375 / 6,442 Lumens |
| Luminous Efficacy |
>140 lm/W |
| Color Temperature |
3000K / 3500K / 4000K / 5000K / 6500K |
| CCT |
5-CCT Selectable |
| CRI |
>80 |
| Input Voltage |
AC 120–277V |
|
|
| Beam Angle |
119° |
| Power Factor |
>0.98 |
| Driver Efficiency |
>90% |
| Dimming |
Continuous 0–10V |
| Auxiliary Dimming |
12V DC |
| Rated Life |
>50,000 Hours |
| Lumen Maintenance |
70% |
| Operating Temperature |
-4°F to 122°F |
| Location Rating |
Damp Location |
| Lens Material |
Acrylic (PMMA) |
| Mounting |
Embedded / Recessed Installation |
| Dimensions |
47.8" L × 23.75" W × 2.13" D |
| Weight |
11.4 lbs |
| Factory Setting |
41W / 4000K |
| Sensor Capability |
Pre-embedded sensor receptacle |
| Controls |
Occupancy & Daylight Controls |
| Optional Controls |
Bluetooth, Emergency, Motion Sensor, Emergency + Motion Sensor |
| Emergency Backup |
Optional 8W / 15W / 20W Battery LED Driver |
| Warranty |
5-Year Limited |
| Energy Savings |
Up to 80% in energy costs |
| Applications |
Offices, Hallways, Multipurpose Rooms, Office Buildings, Conference Rooms, Supermarkets, Stores, and other indoor applications |
