Description

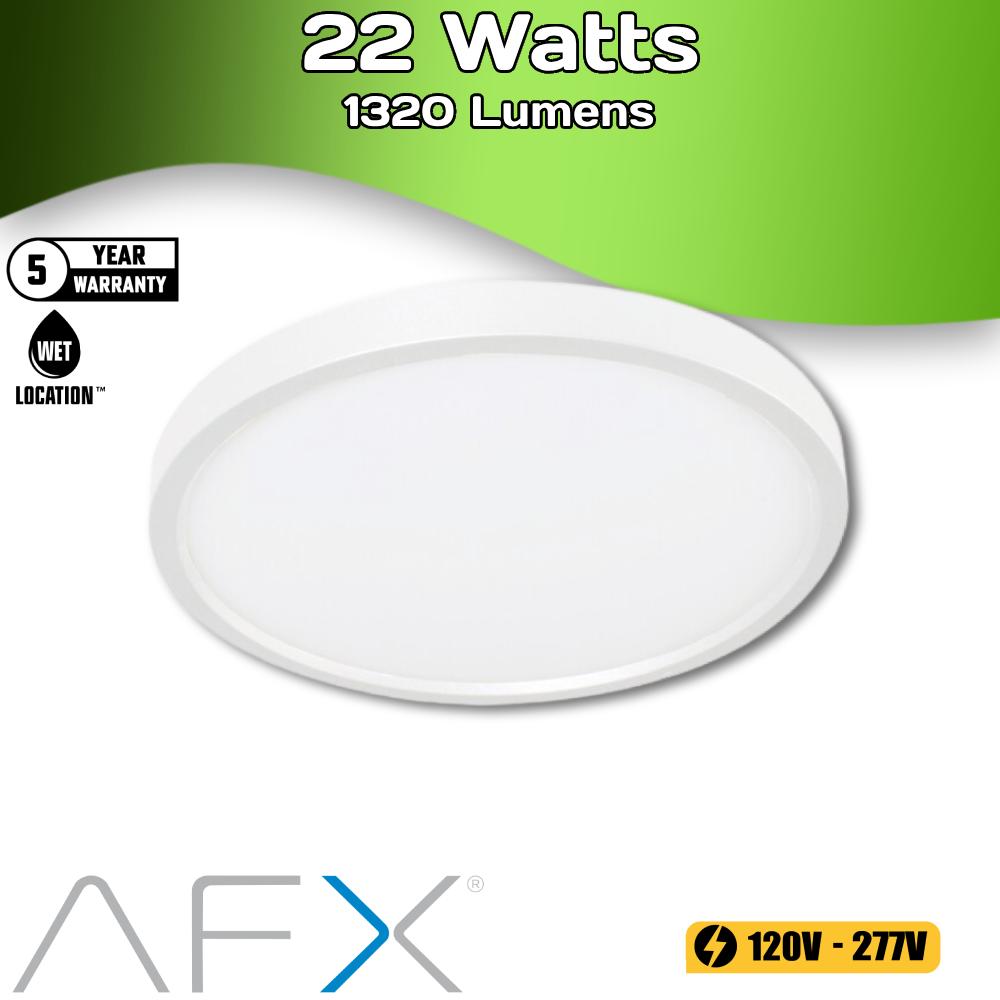

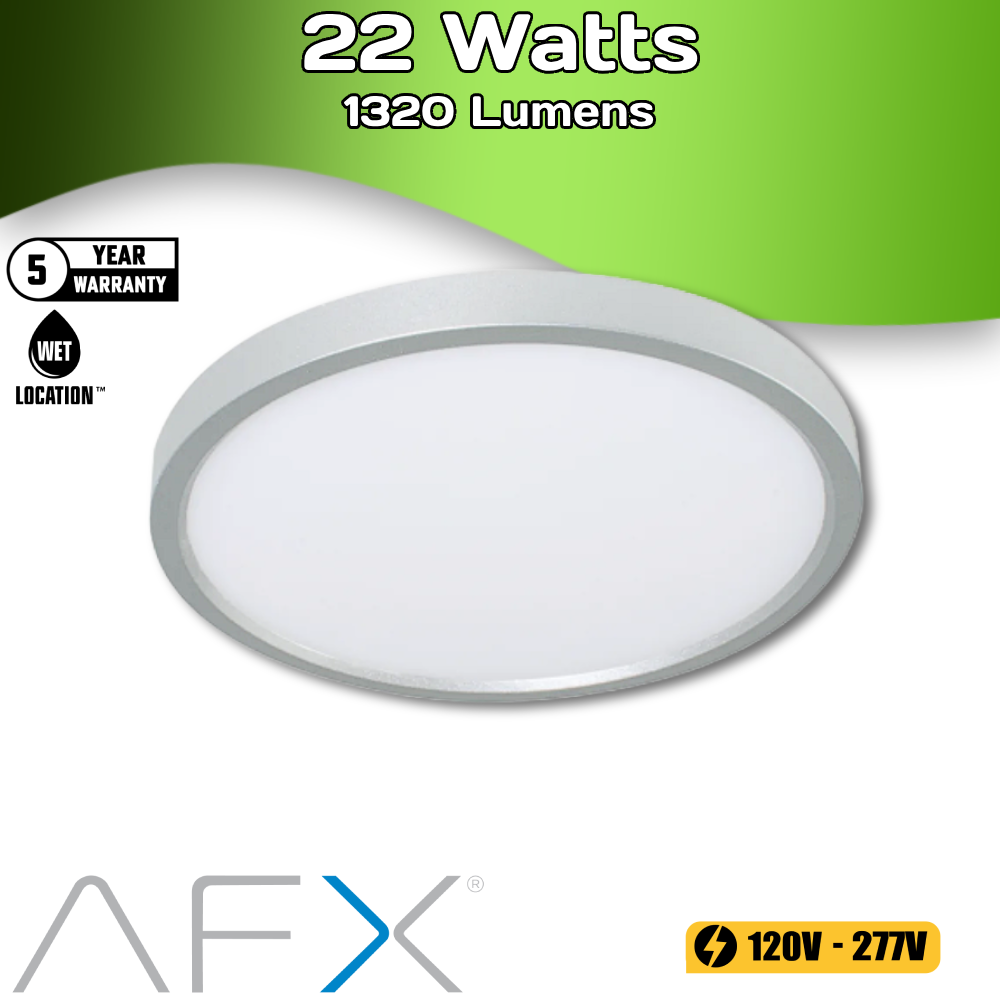

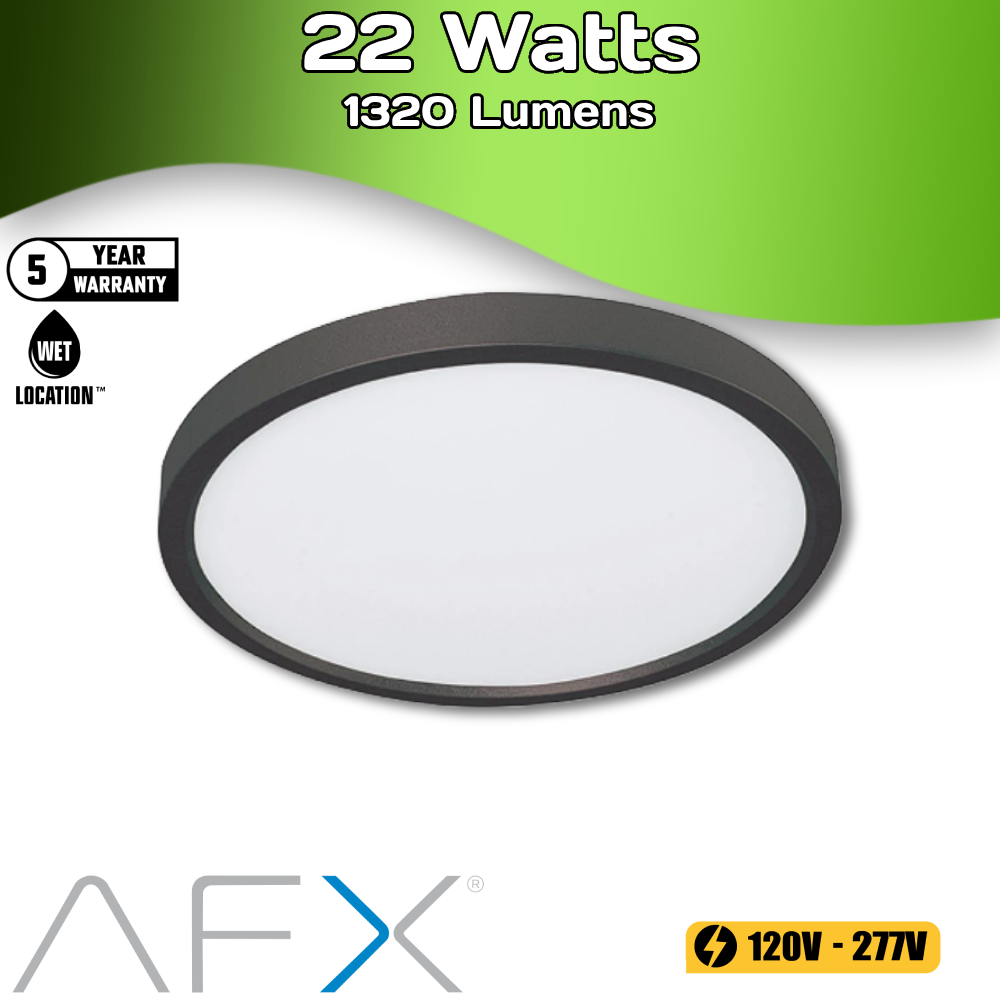

The Edge Round LED Surface Mount Disc Light (EGRF Series – D1) offers a sleek, ultra-low profile lighting solution designed for modern residential and commercial spaces. Featuring advanced edge-lit LED technology, this fixture delivers smooth, even illumination while maintaining a clean and contemporary appearance.
| Attribute | Specification |
|---|---|
| Product Series | EGRF Edge Round LED Surface Mount Disc Light |
| Driver Version | D1 |
| Input Voltage | 120V |
| Dimming | TRIAC / ELV Dimming |
| Wattage Options | 22W |
| Delivered Lumens | 1320 lm |
| Color Temperature | Adjustable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Color Rendering Index | 90 CRI |
| Lifespan | 50,000 Hours |
| Operating Temperature | -20°C to 45°C |
| Mounting | Wall or Ceiling Mount |
| Installation | Mounts to Standard Junction Box |
| Housing Material | Injection Molded Housing with Aluminum Backplate |
| Diffuser | White Acrylic |
| Fixture Thickness | 3/4" |
| Diameter Options | 12" |
| Finish Options | White, Satin Nickel(Silver), Black |
| Certification | cETLus Listed |
| Compliance | Title 24 / JA8 Compliant |
| Location Rating | Wet Location (Indoor & Covered Outdoor Ceiling Use) |
| Applications | Hallways, Kitchens, Bathrooms, Closets, Corridors, Showers |
| Warranty | 5 Year Limited Warranty |
