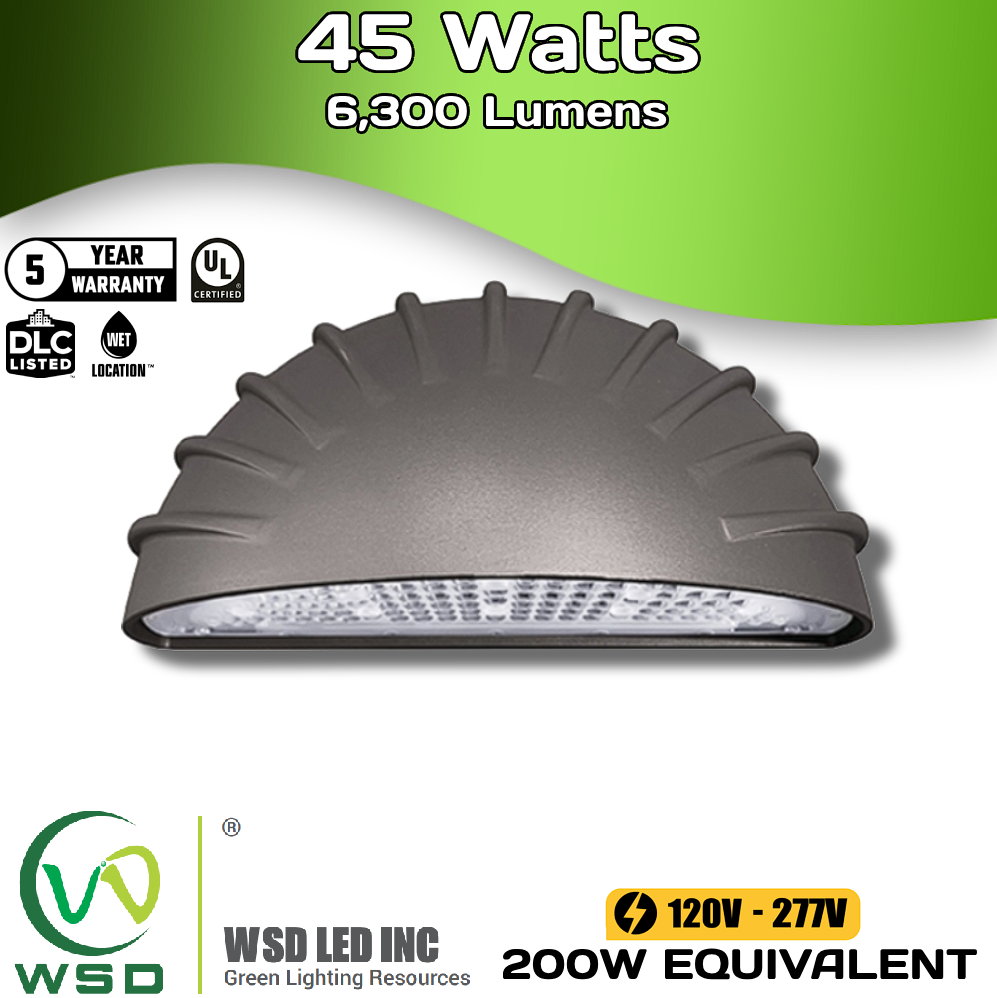

45W Football LED Full Cutoff Wallpack

Spec Sheets

High-Efficiency Outdoor & Indoor LED Wall Pack Lighting

The LED Football Full Cut-Off Wall Pack Series from WSD LED INC is a high-performance lighting solution designed for durability, energy efficiency, and optimal illumination in a variety of commercial and industrial settings. Engineered with precision optics and Lumileds LED technology, this wall pack provides superior brightness and even light distribution, making it ideal for outdoor building perimeters, mechanical workshops, storage warehouses, gas stations, stadium platforms, toll booths, and more.

🔧 Key Features

• Lumileds LED Chips: Delivers high luminous efficacy and long operational life.

• Wattage Options: Available in 45W (6300 lumens) and 70W (9446 lumens) models.

• High Efficiency Driver: Supports a wide input voltage range of AC120-277V with 90% driver efficacy.

• Photocell Control (Standard): Built-in dusk-to-dawn sensor for energy savings.

• Dimming Capability: 1-10V dimmable for advanced lighting control.

• Color Temperatures: Choose from 4000K or 5000K for cool, bright light.

• Rugged Build: Die-cast aluminum housing with superior thermal management (Tj < 85℃).

• Outdoor-Ready: Rated for wet locations and built to withstand harsh environments.

• Longevity: L70 rated lifespan of 75,000 hours.

• Operating Temps: Reliable in extreme conditions from -22ºF to 113ºF.

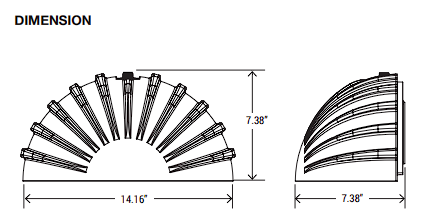

📐 Specifications

📦 Product Details

• Finish Options: Dark Bronze (standard), White, Black, Silver

• Box Dimensions: 14.96” x 7.68” x 7.87”

• Net Weight: 7.7 lbs (45W), 8 lbs (70W)

• Warranty: 5-Year Limited Warranty

• Mounting Height: Designed for optimal coverage at mounting heights up to 66 ft.
