Description
Product Information
|
Attribute |
Specification |
|---|---|
|
Product Type |

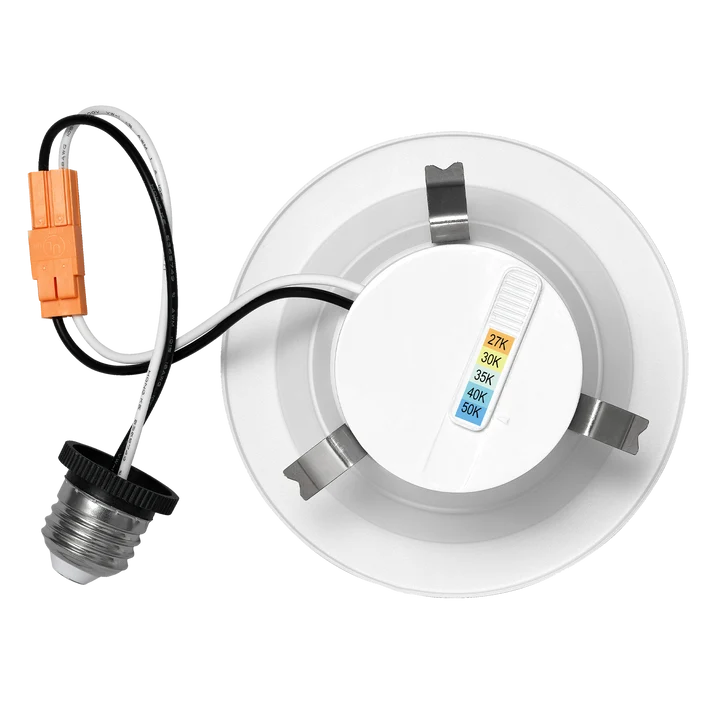

4" LED Downlight Retrofit |
|
Manufacturer |
Luxrite |
|
Model Number |
LED/DL4/5CCT/FL/RD |
|
Aperture |
4" |
|
Distribution |
Fixed |
Electrical Specifications
|
Attribute |
Specification |
|---|---|
|
Power |
9W |
|
Input Voltage |
120V |
|
Frequency |
60Hz |
|
Dimming Type |
TRIAC |
|
Dimming Range |
10–100% |
|
Lamp Base |
E26 Adapter |
|
Feed Wire Gauge |
20 AWG |
|
Breaker Capacity (15A at 120V) |
133 pieces (estimated; actual capacity may vary) |
Lighting Performance
|
Attribute |
Specification |
|---|---|
|
Color Temperature (CCT) |
2700K / 3000K / 3500K / 4000K / 5000K |
|
Luminous Flux |
765 Lumens |
|
Color Rendering Index (CRI) |
90 |
|
Luminous Efficacy |
75 lm/W |
|
Beam Angle |
90° |
Construction and Mounting
|
Attribute |
Specification |
|---|---|
|
Housing Material |
Aluminum |
|
Lens Material |
PC |
|
Trim Finish |
Smooth |
|
Mounting Type |
Recessed Housing |
|
Dimensions |
5.09" Diameter × 3.11" Height |
|
Compatible Ceiling Types |
Drywall, Wood |
Application and Ratings
|
Attribute |
Specification |
|---|---|
|
Application |
Residential, Commercial |
|
Wet Location Rated |
Yes |
|
IC Rated |
Yes |
|
Certifications |
ETL, Title 24 |
|
Operating Temperature |
-4°F to 104°F |
