Description
High-Performance Warehouse & Commercial Lighting

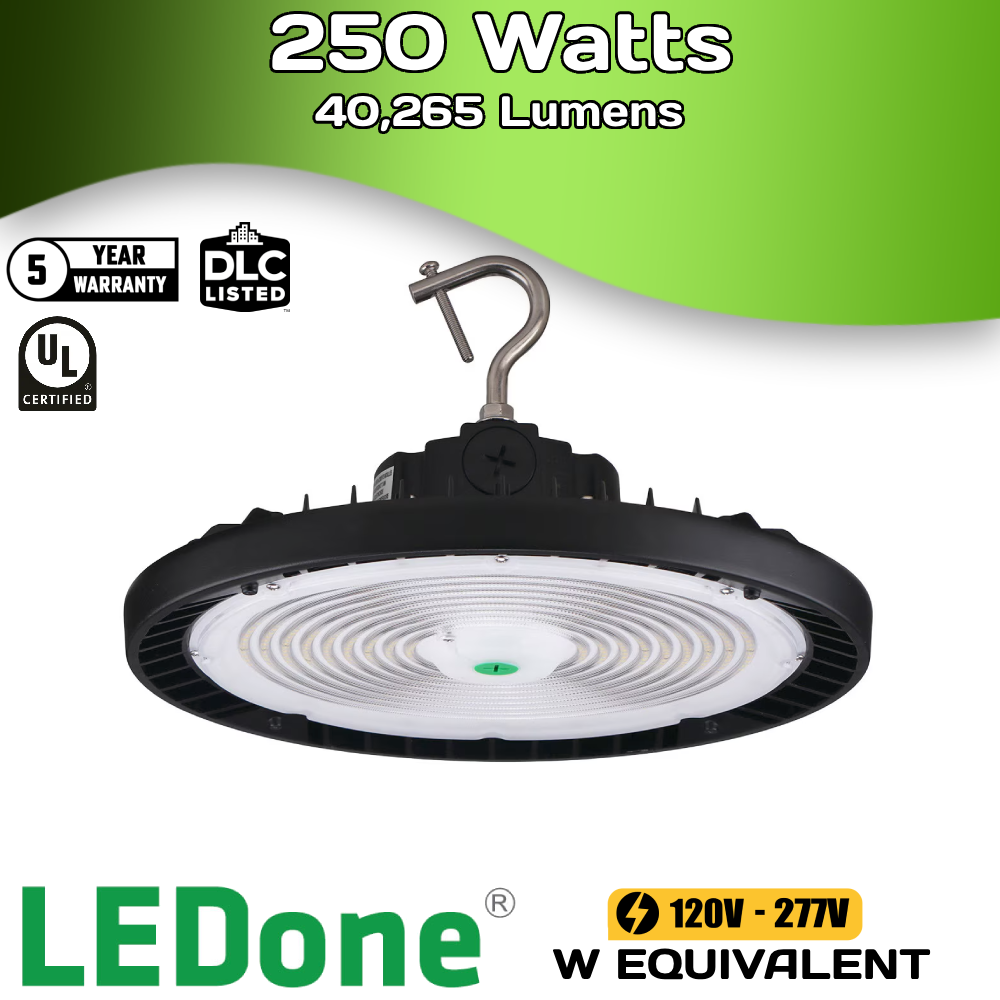

The LEDone LOC-ELHB Series UFO High Bay delivers up to 40,265 lumens at 250W, providing powerful, energy-efficient illumination for warehouses, manufacturing facilities, and other high-ceiling spaces. With selectable wattage (180W / 200W / 250W), it replaces traditional 600W–1,000W HID fixtures while reducing energy consumption. Adjustable Power: Select 180W, 200W, or 250W to match your lighting needs. Commercial-Grade Durability: IP66-rated, corrosion-resistant aluminum housing with a durable PC3000U lens. Efficient Lighting Control: 0–10V dimming, 90° beam angle, and built-in sensor base for compatible sensors. Long-Lasting Performance: 50,000-hour rated lifetime and 5-year limited warranty.
Installation & Wiring Guide (PDF)
| Attribute | Specification |
|---|---|
| Product Type | LED UFO High Bay Light with Built-in Sensor Base |
| Model | LOC-ELHB-MW(180/200/250)50KD-LV-V2 |
| Wattage Options | 180W / 200W / 250W |

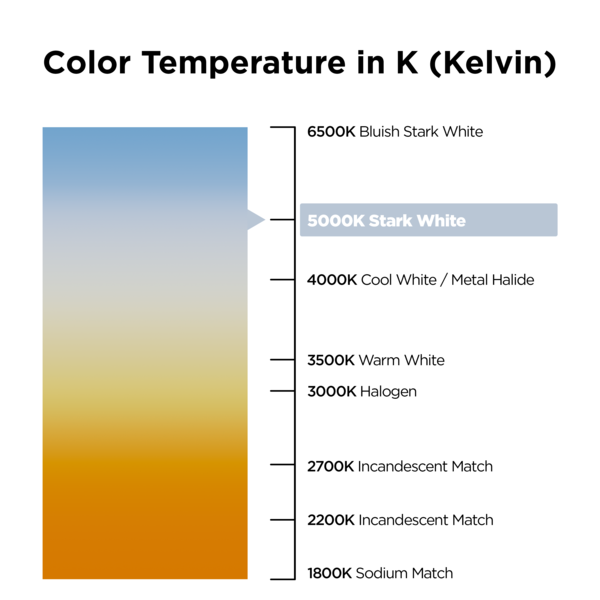

| Color Temperature | 5000K |
| Lumen Output | 28,990.8 / 32,212 / 40,265 Lumens |
| Luminous Efficacy | 161.06 lm/W |
| CRI | 83 |
| Input Voltage | AC 120–277V |
| Power Factor | 0.90 |
| THD | 15% |
| Beam Angle | 90° |
| Dimming | 0–10V |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Rated Life | 50,000 Hours |
| IP Rating | IP66 |
| Surge Protection | 6KV SPD |
| Lens | PC3000U |
| Housing | Aluminum Alloy |
| Finish | Corrosion-Resistant Powder Coat |
| Mounting | Hook Mount |
| Sensor Base | Built-in sensor base for smart sensor installation |
| Cord | 7.5 ft cord with NEMA 5-15P 3-prong plug |
| Cord Availability | 120–277V 180W/200W/250W model specifications list the 7.5 ft cord; source specifically states 7.5 ft cord for 150W and 250W models |
| Wattage Default | Highest wattage setting — 250W |
| Emergency Driver | LOC-EMDR-30WLI-200 (Optional) |
| Warranty | 5-Year Limited Warranty |
| Replacement Range | 600W–1,000W HID |

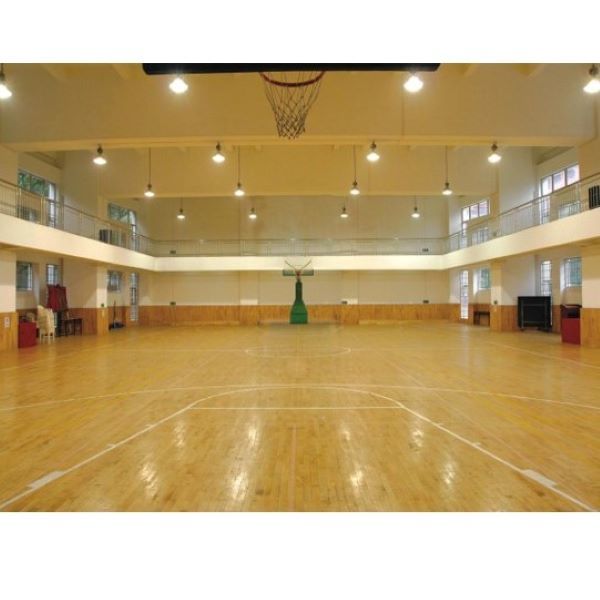

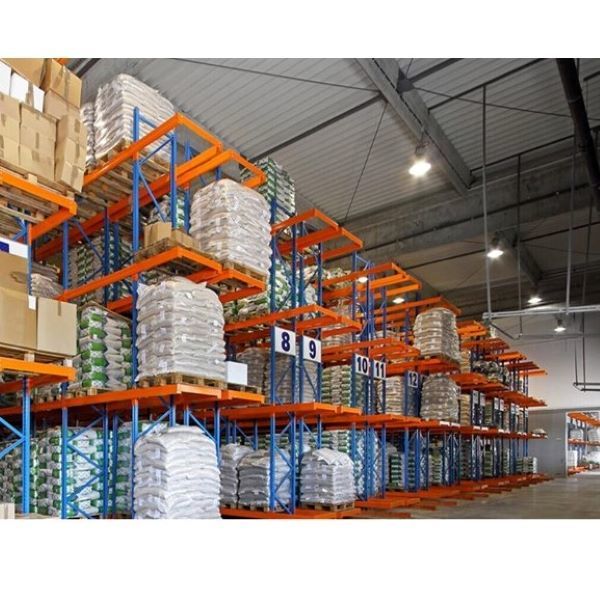

| Applications | Warehouses, manufacturing facilities, convention centers, sporting arenas, big-box retail stores, cold storage facilities, gymnasiums |
| Net Weight | 6.77 lbs |
| Master Carton Size | 15.35" × 15.35" × 6.3" |
| Gross Weight | 9.04 lbs |
| Pieces per Carton | 1 |
| UPC | 00810050947121 |
| DLC Product ID | S-KQ49HS |
