Description

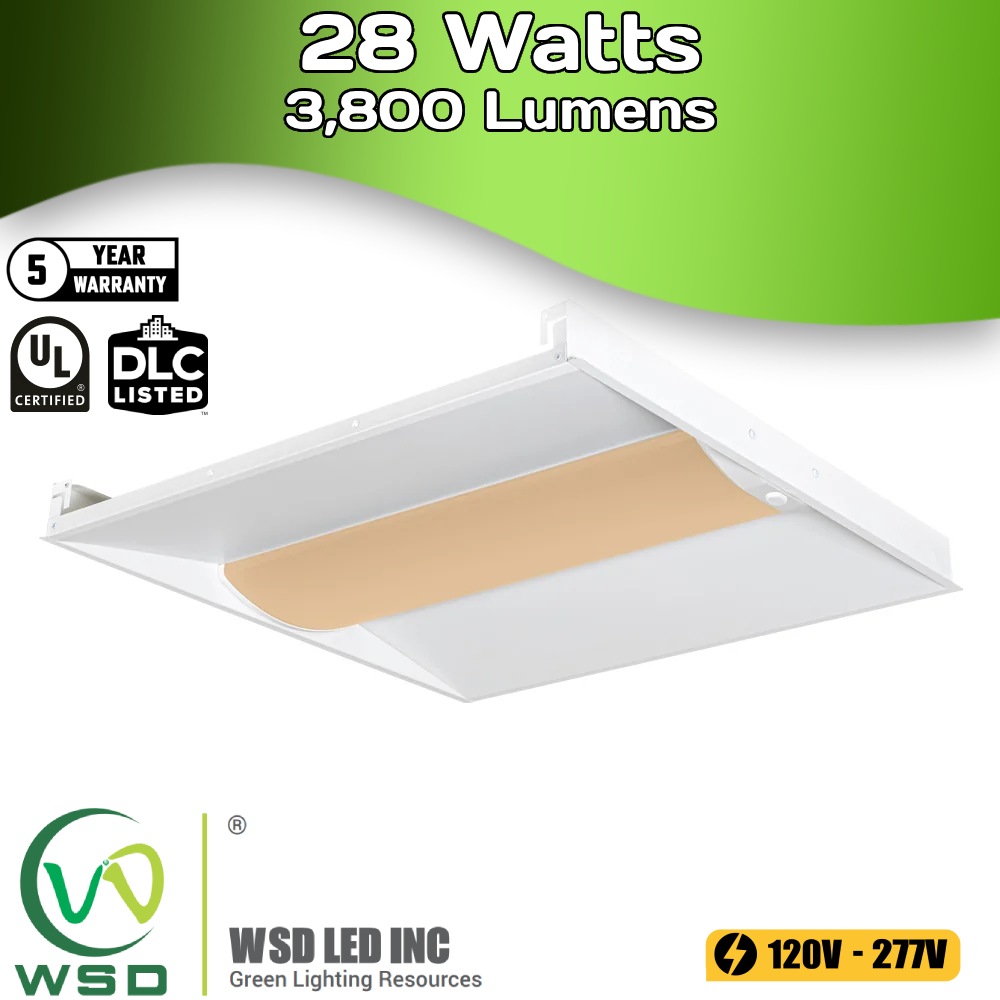

The Tunable Center Basket Troffer light allows for adjustment of the power and color temperature of the whole lamp. The power and color temperature can be selected according to the actual needs of customers. For example, if you want 45W power and 4000K color temperature, you need to shift the dial code switch to the middle position.
| Attribute | Details |
|---|---|
| Model Number | 22TRF202530W27-3545K |
| Fixture Type | 2×2 LED Troffer |
| Power Selectable | 20W / 25W / 30W |
| Lumen Output | 2570 lm / 3125 lm / 3850 lm |
| Efficacy | ≥ 125 lm/W |
| CCT Selectable | 3500K / 4000K / 5000K |
| CRI | ≥ 80 |
| LED Type | SMD2835 |
| Beam Angle | 119° |
| Input Voltage | AC 120–277V |
| Dimming | 1–10V Dimmable |
| Power Factor | ≥ 0.98 |
| Driver Efficiency | ≥ 90% |
| Rated Lifespan | > 75,000 hours |
| Warranty | 5-Year Limited Warranty |
| Operating Environment | Damp Location Rated |
| Installation Type | Embedded / Drop Ceiling Grid |
| Dimensions (L×W×H) | 603 mm × 603 mm × 54 mm (23.75" × 23.75" × 2.13") |
| Weight | 6.8 lbs |
| Packaging | 2 pcs/CTN — 617 × 610 × 123 mm (24.3" × 24.0" × 4.8") |
| Optional Accessories (Sold Separately) | Surface Mount Kit, Emergency Backup Driver (15W), Bluetooth Microwave Motion Sensor (BRI810), Remote Control (RC100) |
