Description
Key Features
✅ Multi-Watt & Multi-CCT Selectable – Choose from multiple wattage and color temperature settings (3000K, 4000K, 5000K)
✅ High-Efficiency LED Technology – Delivers up to 130 lm/W efficacy, ensuring maximum brightness with minimal energy consumption
✅ Integrated Photocell – Dusk-to-dawn operation for automatic energy savings
✅ IP65-Rated Weatherproof Design – Built for outdoor durability, resistant to water, dust, and corrosion
✅ 0-10V Dimming Standard – Adjustable brightness for enhanced lighting control
✅ Heavy-Duty Construction – Die-cast aluminum housing with a secondary heat sink for improved LED lifespan
✅ Universal Voltage – 120-347V input, making it suitable for a wide range of applications
✅ Long Lifespan & Low Maintenance – 50,000-hour LED life reduces replacement and maintenance costs
✅ Simple Wall-Mount Installation – Hassle-free setup with minimal downtime
Product Specifications

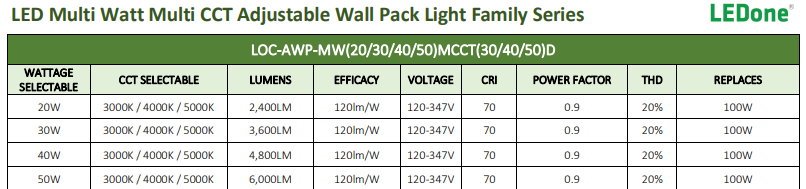

LOC-AWP-MW(20/30/40/50)MCCT(30/40/50)D
| Wattage Options | CCT Options | Lumen Output (Max) | Efficacy (lm/W) | Voltage | CRI | Power Factor | THD | Replaces |
|---|---|---|---|---|---|---|---|---|
| 20W | 3000K / 4000K / 5000K | 2,400LM | 120 lm/W | 120-347V | 70 | 0.9 | 20% | 100W HID |
| 30W | 3000K / 4000K / 5000K | 3,600LM | 120 lm/W | 120-347V | 70 | 0.9 | 20% | 100W HID |
| 40W | 3000K / 4000K / 5000K | 4,800LM | 120 lm/W | 120-347V | 70 | 0.9 | 20% | 100W HID |
| 50W | 3000K / 4000K / 5000K | 6,000LM | 120 lm/W | 120-347V | 70 | 0.9 | 20% | 100W HID |

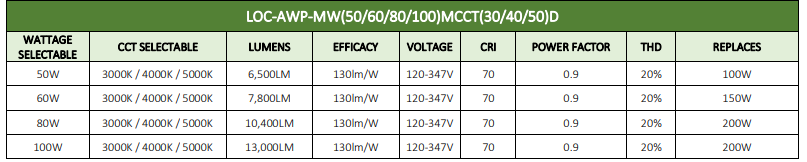

LOC-AWP-MW(50/60/80/100)MCCT(30/40/50)D
| Wattage Options | CCT Options | Lumen Output (Max) | Efficacy (lm/W) | Voltage | CRI | Power Factor | THD | Replaces |
|---|---|---|---|---|---|---|---|---|
| 50W | 3000K / 4000K / 5000K | 6,500LM | 130 lm/W | 120-347V | 70 | 0.9 | 20% | 100W HID |
| 60W | 3000K / 4000K / 5000K | 7,800LM | 130 lm/W | 120-347V | 70 | 0.9 | 20% | 150W HID |
| 80W | 3000K / 4000K / 5000K | 10,400LM | 130 lm/W | 120-347V | 70 | 0.9 | 20% | 200W HID |
| 100W | 3000K / 4000K / 5000K | 13,000LM | 130 lm/W | 120-347V | 70 | 0.9 | 20% | 200W HID |
Installation & Controls
-
Simple wall-mount design for easy retrofit or new installations
-
Integrated photocell for automatic dusk-to-dawn operation
-
0-10V dimming compatibility for customizable brightness and energy savings

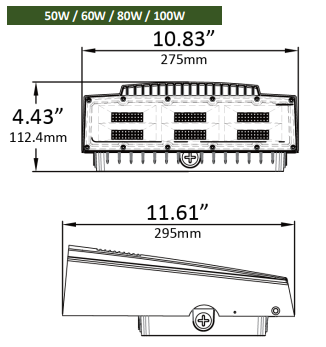

Physical Dimensions & Packaging
| Model | Weight (Net/Gross) | Carton Dimensions | UPC Code |
|---|---|---|---|
| LOC-AWP-MW(20/30/40/50)MCCT(30/40/50)D | 5.51 lbs / 35.27 lbs | 16.14” x 9.84” x 15.75” (6-pack) | 00810050942737 |
| LOC-AWP-MW(50/60/80/100)MCCT(30/40/50)D | 8.6 lbs / 56.44 lbs | 23.23” x 12.2” x 18.9” (6-pack) | 00810050942744 |
Ideal Applications
✔ Parking Lots & Garages
✔ Shopping Malls & Auto Dealerships
✔ Residential Complexes & Municipal Spaces
✔ Sporting Complexes & Logistic Centers
