Description
The Sensor Based LED Troffer Lighting Series can be widely used for Indoor Excellent for Offices, Hallways, Multipurpose Rooms , Office Buildings, Conference Rooms, super market, store and many other applications.
Spec Sheet
| Attribute | Details |
|---|---|
| Model Number | 14TRF202530W27-3545K |

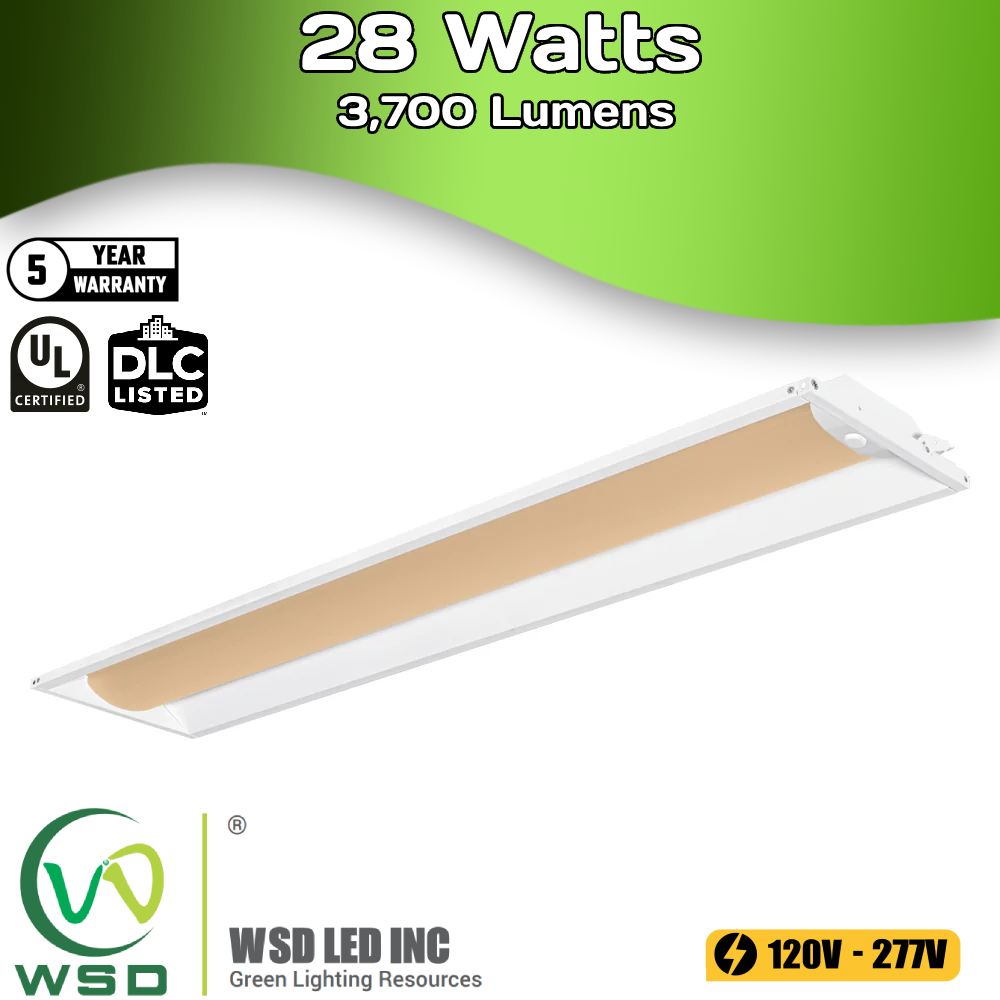

| Fixture Type | 1x4 LED Troffer |
| Power Selectable | 20W / 25W / 30W |
| Lumen Output | 2570 lm / 3125 lm / 3850 lm |
| Efficacy | ≥ 125 lm/W |
| CCT Selectable | 3500K / 4000K / 5000K |
| CRI | ≥ 80 |
| Beam Angle | 119° |
| Input Voltage | AC 120–277V |
| Dimmable | Yes – 1–10V Dimming |
| LED Type | SMD2835 |
| Power Factor | ≥ 0.98 |
| Driver Efficiency | ≥ 90% |
| Lifespan | > 75,000 hours |
| Warranty | 5-Year Limited Warranty |
| Operating Environment | Damp Location Rated |
| Installation Type | Embedded / Drop Ceiling Grid |
| Protection Level | Damp Rated |
| Compatible Dimmers | Most Leviton & Lutron dimmers |
| Dimensions (L×W×H) | 1213mm × 298mm × 50mm (47.8" × 11.75" × 2.0") |
| Weight | 7.7 lbs |
| Packaging | 2 pcs/CTN – 1230 × 307 × 113 mm (48.4" × 12.1" × 4.4") |
| Optional Accessories (Sold Separately) | Surface Mount Kit, Emergency Backup Driver (15W), Bluetooth Microwave Motion Sensor (BRI810), Remote Control (RC100) |
